Description

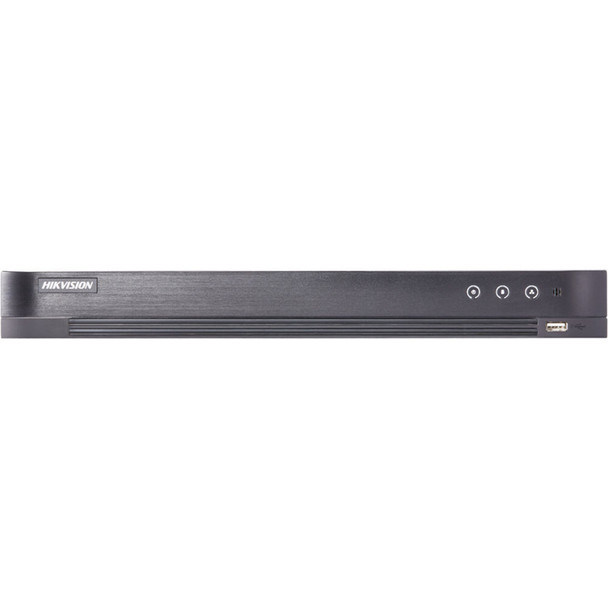

Hikvision DS-7208HQHI-K2-4TB 8 Channel 2MP Hybrid Video Recorder with 4TB HDD Included
The Hikvision DS-7208HQHI-K2-4TB is an 8 channel 2MP hybrid video recorder designed to deliver reliable Turbo HD performance for small to mid-sized surveillance systems. Supporting up to 1080p recording at 15fps, this 1U DVR provides efficient video management with advanced H.265 Pro+ compression technology to significantly reduce storage consumption while maintaining high image quality. The unit supports five adaptive signal types including HDTVI, AHD, CVI, CVBS, and IP, offering flexible compatibility with a wide range of analog and network cameras. In addition to its 8 analog channels, the recorder can support up to 12 network cameras when configured in enhanced IP mode, making it ideal for hybrid system expansion. The DS-7208HQHI-K2-4TB comes pre-installed with a 4TB HDD and supports dual SATA interfaces with up to 10TB capacity per disk, ensuring scalable storage for longer retention periods. Designed for efficient operation in a compact 1U chassis, this recorder is well suited for retail, office, and commercial security installations requiring dependable HD recording and hybrid flexibility.
Key Features:
- 8 channel DVR in 1U chassis; compact design for rack or desktop installation
- Up to 2MP recording resolution; supports 1080p recording at 15fps
- Hybrid video recorder; supports HDTVI, AHD, CVI, CVBS, and IP inputs
- Supports up to 12 network cameras; enables expanded IP integration
- H.265 Pro+ compression; maximizes storage efficiency and reduces bandwidth usage
- Pre-installed with 4TB HDD; ready for immediate recording deployment
- Dual SATA interfaces; supports up to 10TB per HDD for scalable storage
- Adaptive 5-in-1 video input; ensures compatibility with multiple camera technologies
- Efficient encoding performance; optimized for stable HD recording
- Designed for Turbo HD systems; ideal for upgrading legacy analog installations
Downloads
Popular Search
Additional Information
|
Audio Compression:
|
G.711u
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
8 Channels
|
|
Color:
|
Black
|
|
Compression:
|
H.265 Pro
H.265 Pro Plus
H.265
H.264 Plus
H.264
|
|
Dimensions:
|
380 x 320 x 48 mm (15.0 x 12.6 x 1.9 in)
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Languages:
|
English
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
7.5 Watts
|
|
Max. Incoming Bandwidth:
|
48Mbps
|
|
Max. Recording Resolution:
|
2MP
|
|
Max. Storage Capacity:
|
20 TB
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Power Supply:
|
12 VDC 3.33A
|
|
Pre-Installed Storage:
|
4 TB
|
|
Product Series:
|
Hikvision Pro Series
Hikvision Turbo HD Series
|
|
Rack Unit (U):
|
1U
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
|
Serial Interface:
|
1x RS485
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x VGA
1x HDMI
1x BNC
|
