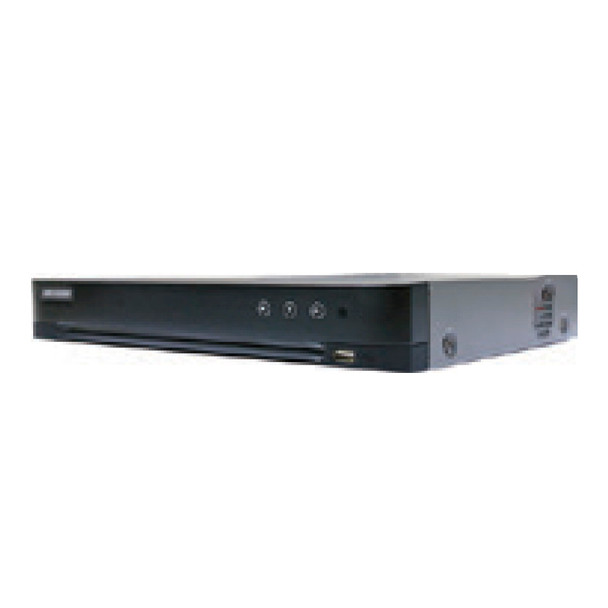

Hikvision DS-7216HUI-K2 16 Channel 2TB Tribrid DVR Digital Video Recorder
The new DS-7200HUI-Kx Series of TurboHD DVRs supports all the new 5 MP TurboHD cameras in models with 4, 8, and 16 channel inputs. Now, razor sharp images at 2592x1944 resolution can be displayed and recorded with HD quality. These tribrid DVRs can auto-detect a standard analog (CVBS), HD-TVI camera, and an IP camera input of up to 6 MP. They also support Hikvision's unique H.265+ video compression, and they include great features ranging from front panel controls to real-time recording and a 16 TB internal recording capability.
Key features:
- 16 Channel
- No HDD included
- Non-PoC Model
- H.265+/H.265/H.264+/H.264
- 2x SATA HDD Slot each supports up to 8TB
- 1x HDMI, 1x VGA
- HD-TVI/CVBS (auto-detect)
- 5 MP Max. Recording Resolution
Replacement of:
DS-7216HUHI-F2/N
Downloads
Datasheet
Hikvision-DS-7216HUI-K2-Datasheet-A1
Quick Start Guide
Hikvision-DS-7216HUI-K2-Quick-Start-Guide-A1
User Manual
Hikvision-DS-7216HUI-K2-User-Manual-A1
Firmware
Hikvision-DS-7216HUI-K2-Firmware-A1
Popular Search
Additional Information
|
Channel Capacity:
|
16 Channels
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max. Incoming Bandwidth:
|
128Mbps
|
|
Max. Recording Resolution:
|
5MP (3K)
|
|
Max. Storage Capacity:
|
16 TB
|
|
Pre-Installed Storage:
|
2 TB
|
|
Rack Unit (U):
|
1U
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
|
Video Output:
|
1x VGA
1x HDMI
1x CVBS
|
|
Warranty:
|
3-year Manufacturer Warranty
|
