Description

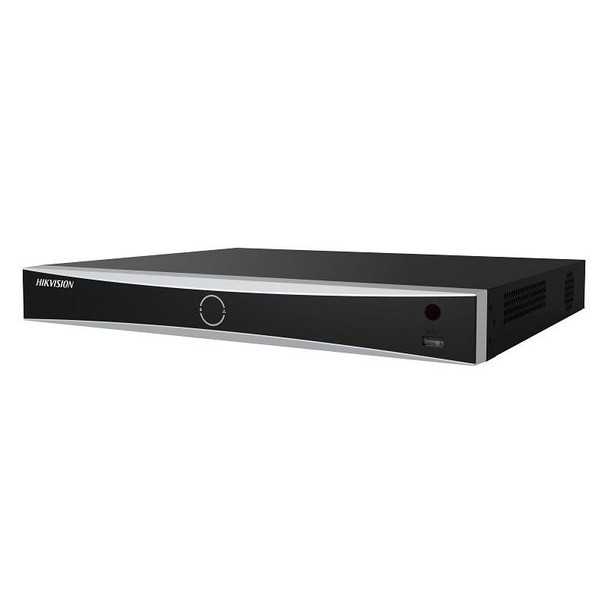

Hikvision DS-7608NXI-I2/8P/S AcuSense 2MP 8-Channel PoE NVR, No Hard Drive Included
The DS-76xxNXI-I2/xxP/4S Series NVR features Hikvision’s new AcuSense technology. It includes a deep learning algorithm that accurately detects the presence of humans and vehicles. Also, the NVR recognizes standard human behaviors and automatically filters out routine alarms, which significantly increases VCA efficiency.
4K (3840 x 2160) video output resolution is standard, and up to 8/16 IP cameras can be connected to the device. Smart search of a selected video area and smart playback are supported, and improve playback efficiency.
Key Features:
- H.265+/H.265/H.264+/H.264 Video Formats
- Intelligent Deep Learning Analytics
- 4-ch Perimeter Protection
- 8-ch IP Camera Inputs
- 16-ch 1080p Decoding Capability
Compression and Recording
- H.265+ Compression Reduces Storage up to 75%
- Full Channel IP Cameras Connection
- TLS Encryption for Added Stream Security
- Double Verification for Playback/Downloading
HD Video Output
- Provide Independent HDMI and VGA Outputs
- HDMI Video Output up to 4K Resolution
Storage and Playback
- 2 SATA HDD Interfaces
- 8-ch Synchronous Playback up to 1080p Resolution
Smart and POS Function
- Multiple VCA (Video Content Analytics) Events
- Smart Search for Selected Video Area
- Smart Playback Improves Playback Efficiency
- POS Information Overlay on Live View/Playback
- POS Triggered Recording and Alarm
Downloads
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722
G.726
MP2L2
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
CE
FCC
|
|
Channel Capacity:
|
8 Channels
|
|
Color:
|
Black
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MPEG4
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
385 x 315 x 52 mm ( 15.2 x 12.4 x 2.0 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
15 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Incoming Bandwidth:
|
80Mbps
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
20 TB
|
|
Network Interface:
|
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
Outgoing Bandwidth:
|
256 Mbps
|
|
Power Budget:
|
120 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
Hikvision AcuSense Series
|
|
Rack Unit (U):
|
1U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 128
|
|
Special Recorder Features:
|
Deep-learning
|
|
USB Interface:
|
1x USB 3.0
2x USB 2.0
|
|
Video Output:
|
1x VGA
1x HDMI
1x CVBS
|
