Description

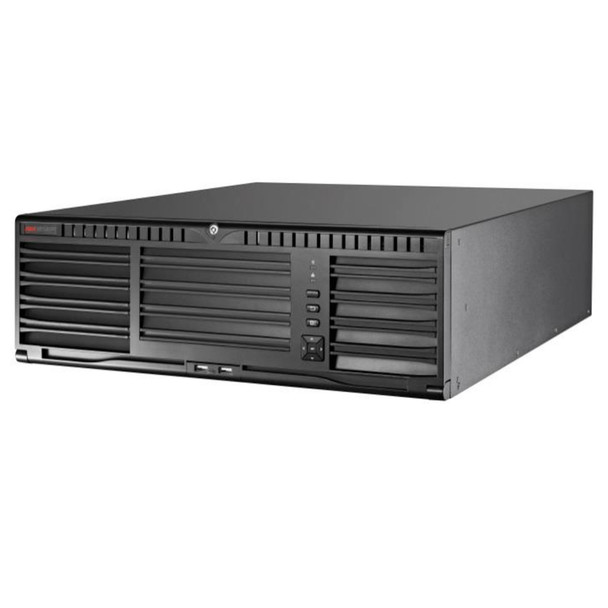

Hikvision DS-96128NI-I16 4K H.265 128 Channel Network Video Recorder
Key Features:
- Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme configurable.
- Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.
- Up to 128 IP cameras can be connected.
- Support live view, storage, and playback of the connected camera at up to 12 megapixels resolution.
- H.265+ compression effectively reduces the storage space by up to 75%.
- 4 self-adaptive 10M/100M/1000M network interfaces.
- Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary output.
- HDMI and VGA1 simultaneous outputs by default. Asynchronous outputs configurable.
- Video outputs at up to 4K (4096×2160) resolution.
- Supports decoding up to 20 channels at 1080p resolution.
- Up to 16 SATA interfaces and 1 eSATA interface provided for HDD connection
- 10 TB capacity for each HDD.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized.
- VCA detection alarm is supported.
Popular Search
Additional Information
|
4K Support:
|
4K Supported
|
|
Channel Capacity:
|
128 Channels
|
|
Compression:
|
H.265 Plus
H.265
H.264 Plus
H.264
MJPEG
|
|
Hard Drive Ports:
|
16 SATA Ports
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max. Incoming Bandwidth:
|
576Mbps
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
160 TB
|
|
Number of PoE Ports:
|
4 PoE Ports
|
|
Outgoing Bandwidth:
|
512 Mbps
|
|
Pre-Installed Storage:
|
No HDD included
|
|
RAID:
|
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
|
|
Rack Unit (U):
|
3U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Video Output:
|
1x VGA
2x HDMI
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
e-SATA:
|
e-SATA
|
