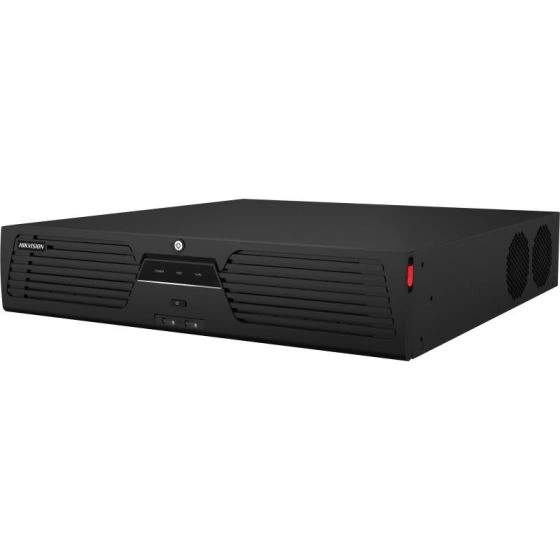

Hikvision DS-9632NI-M8-70TE 32 Channel 8K Network Video Recorder with 70TB HDD Included

Hikvision DS-9632NI-M8-70TE 32 Channel 8K Network Video Recorder with 70TB HDD Included

The Hikvision DS-9632NI-M8-70TE delivers an enterprise-grade 32-channel M Series NVR with exceptional 70TB pre-installed storage capacity. This professional 2U rackmount recorder supports up to 32 MP resolution recording and features groundbreaking 8K video output or dual 4K independent displays, providing unprecedented image clarity for control room deployments. With 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, it accommodates high-throughput surveillance installations requiring maximum recording capacity and extended retention periods for compliance-driven environments.

Engineered with advanced H.265+ compression that reduces storage space by up to 75%, the DS-9632NI-M8-70TE maximizes the efficiency of its substantial 70TB storage while maintaining exceptional video quality. Eight hot-swappable SATA interfaces support up to 16 TB per drive with comprehensive RAID configurations (0, 1, 5, 6, 10, N+M hot spare) for enterprise-grade data protection and fault tolerance. The recorder features stream over TLS encryption technology for secure video transmission, double verification for playback and downloading, and support for OTAP protocol enabling solar-powered camera integration with scheduled video retrieval.

The DS-9632NI-M8-70TE supports advanced streaming technology that ensures smooth live viewing even in poor network conditions, along with configurable special camera functions including VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (Automatic Number Plate Recognition), and people counting. Dual independent HDMI and VGA outputs provide flexible monitoring configurations with 8K resolution on HDMI 1 or simultaneous dual 4K displays for maximum visual fidelity. With 16-channel synchronous playback capability and plug-in-free web access, it delivers comprehensive surveillance management for large-scale installations requiring maximum storage capacity and retention.

Key Features:

• 70TB enterprise-grade HDD pre-installed with 8 hot-swappable bays; provides extensive storage capacity for long-term retention with support for up to 16 TB per drive and RAID 0/1/5/6/10/N+M configurations
• 32-channel IP camera support with up to 32 MP resolution; accommodates ultra-high-definition cameras for maximum detail capture in demanding surveillance applications
• 8K video output (7680×4320) at 30Hz or dual independent 4K displays; delivers unprecedented visual clarity for control room monitoring with flexible multi-display configurations
• 320 Mbps incoming / 400 Mbps outgoing bandwidth; supports high-throughput installations with simultaneous recording, live viewing, and remote access across extensive camera deployments
• H.265+ compression reduces storage requirements by up to 75%; maximizes the efficiency of 70TB storage capacity while maintaining exceptional video quality for extended retention
• RAID with N+M hot spare support; provides enterprise-grade data protection with automatic failover to spare drives for uninterrupted recording in mission-critical installations
• Advanced streaming technology for poor network conditions; ensures smooth live viewing through adaptive bitrate and buffering optimization for remote monitoring scenarios
• Special camera support including ANPR, people counting, and VCA detection; enables comprehensive analytics for traffic monitoring, occupancy management, and intelligent event detection
• Dual independent HDMI and VGA outputs; supports simultaneous main and auxiliary displays for control room operations with 8K or dual 4K resolution capability
• Stream over TLS encryption with double verification; ensures secure video transmission and authenticated access for playback and downloading in high-security enterprise environments
