Description

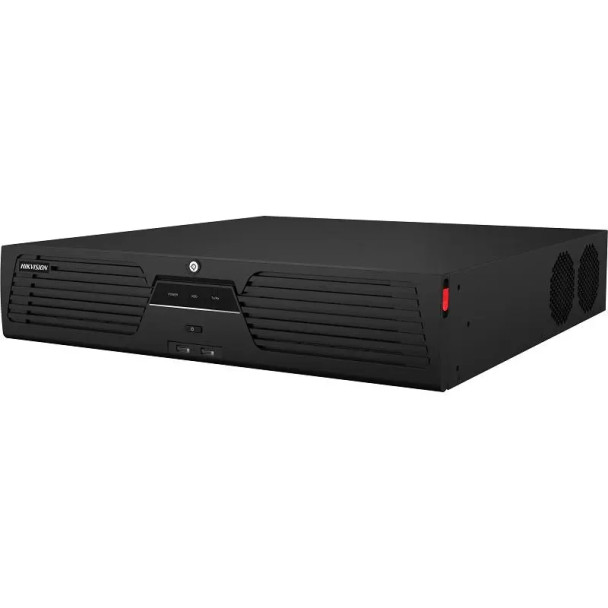

Hikvision DS-9664NI-M8-32TB M Series 32MP 64-channel NVR, 32TB Hard Drive Included
Today’s security cameras are continually improving – resolutions are going up along with the number of lenses. Newer models are capturing huge scenes as well as tiny details at the same time. Advanced NVRs at the back end are also boosting users’ experience. Leading the way, Hikvision’s newly released M-Series NVR has been comprehensively upgraded to deliver high resolutions with sharp imaging in expansive areas. M-Series NVRs support two channels at 32 MP decoding and 8k resolution or dual-4k output (4HDD bay and above). It’s security video – and beyond.
Key Features:
- Up to 64-ch IP camera inputs, non PoE
- Decoding capacities: 2 channels @ 32 MP, 8 channels @ 8 MP, 16 channels @ 4 MP, or 32 channels @ 1080p
- Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
- Up to single 8K HDMI or dual 4K output
- 8 SATA interfaces
- Supports RAID 0/1/5/6/10, and one-click to turn on RAID mode
- Support dual-os to ensure high reliablility of system
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K or dual 4K resolution
Storage and Playback
- 8 SATA interfaces for HDD connection (up to 14 TB capacity per HDD)
- 1 eSATA interface for HDD connection
- 16-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
Downloads
Datasheet
Hikvision-DS-9664NI-M8-32TB-Datasheet-A1
Quick Start Guide
Hikvision-DS-9664NI-M8-32TB-Quick-Start-Guide-A1
User Manual
Hikvision-DS-9664NI-M8-32TB-User-Manual-A1
Popular Search
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
16 Channel
|
|
Alarm Output:
|
9 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
AAC
G.711alaw
G.711ulaw
G.722
G.726
MP2L2
PCM
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
2x RCA
|
|
Capacity for each disk:
|
up to 14TB
|
|
Certifications:
|
CE
FCC
|
|
Channel Capacity:
|
64 Channels
|
|
Color:
|
Black
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
|
|
Connection Type:
|
Wired
|
|
DDNS Functionality:
|
DDNS
|
|

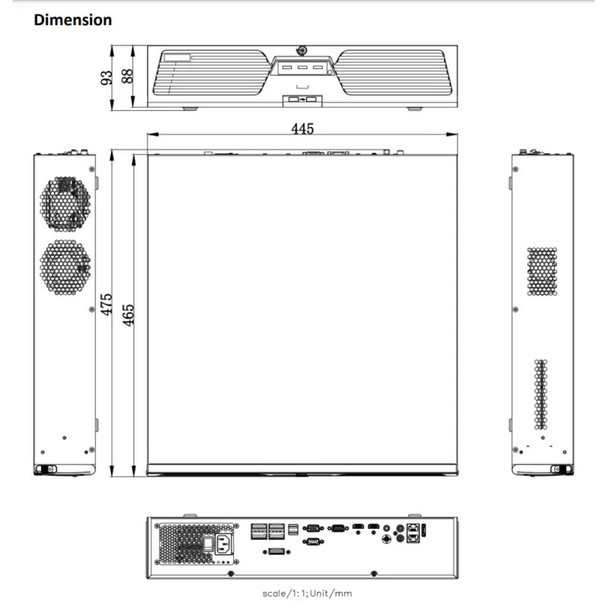

Dimensions:
|
445 x 465 x 93 mm (17.5 x 18.3 x 3.7 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
50 Watts
|
|
Max. FPS and Resolution:
|
30fps at 7680 x 4320
|
|
Max. Incoming Bandwidth:
|
400Mbps
|
|
Max. Recording Resolution:
|
32MP
|
|
Max. Storage Capacity:
|
112 TB
|
|
Network Interface:
|
2x RJ-45 10M/100M/1000M self-adaptive Ethernet
|
|
Outgoing Bandwidth:
|
400 Mbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
32 TB
|
|
Product Series:
|
Hikvision M Series
|
|
Protocols:
|
DDNS
DHCP
DNS
HTTP
HTTPS
IPv4
IPv6
iSCSI
ISUP
NFS
NTP
RTSP
SADP
SMTP
SNMP
TCP/IP
UPnP
|
|
RAID:
|
RAID 0
RAID 1
RAID 10
RAID 5
RAID 6
|
|
Rack Unit (U):
|
2U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Serial Interface:
|
1x RS232
1x RS485
|
|
Synchronous Playback:
|
16 Channel
|
|
USB Interface:
|
2x USB 2.0
2x USB 3.0
|
|
Video Output:
|
1x CVBS
2x HDMI
2x VGA
|
|
e-SATA:
|
e-SATA
|
