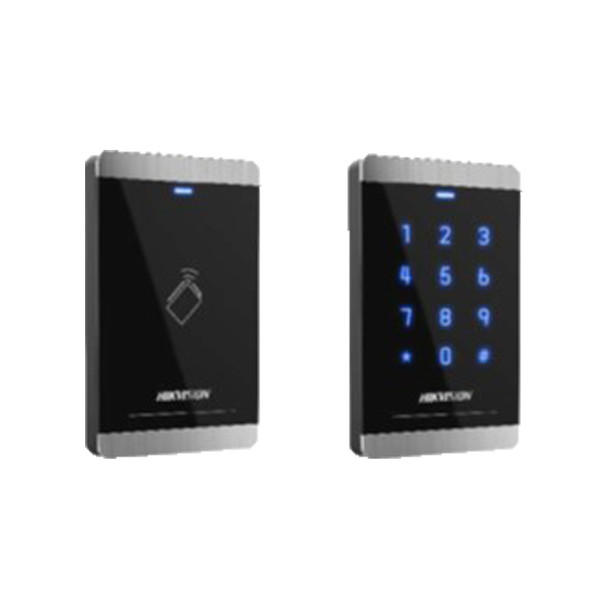

Hikvision DS-K1103MK Card Reader with Keypad

Brand: Hikvision
Part Number: DS-K1103MK
Write a Review
Check other similar products:
Technical Support Technical Support
  • Protection Code : IP64
  • Access Control Type : Card Readers


Hikvision DS-K1103MK Card Reader with Keypad

Key Features:

  • Processor: 32 bit
  • Reading Frequency: 13.56MHz
  • Reading distance: 1.18 to 1.96")
  • Communication method: Wiegand and RS-485 communication
  • LCD Display: No
  • LED lights: Power Indicator; Status LED Indicator
  • ID Settings: Setting by the DIP Switch on the Main Board
  • Keypad: No Keypad (DS‐K1103M) Keypad with 12 Keys (0 to 9, *, #) (DS‐K1103M K)
  • Power Supply: 12V DC
  • Working Current: ≤500mA
  • Power Consumption: ≤6W
  • Working humidity: 10% to 90% (Non Condensing)
  • Dimensions: 129x76x14.7mm (5.08x2.99x0.58")
  • Weight: ≤ 0.15Kg
  • Protection Level: IP 64
  • Installing Method: Only applied for120 Gang Box
  • Audio Alert: Beeper
  • Certifications: FCC, CE
  • Working Temperature: ‐40°C to +70°C (‐40°F to +158°F)

Additional Information

Access Control Type:
Card Readers
Protection Code:
Read Format:
13.56 mHz
