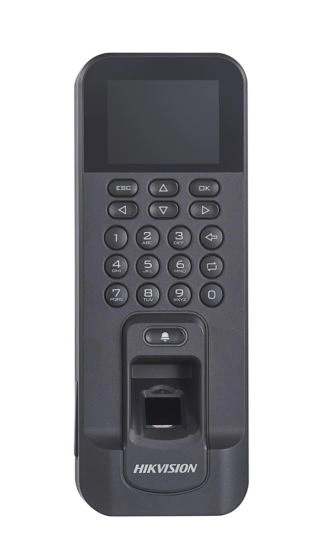

Hikvision DS-K1T804BMF Fingerprint Access Control Terminal

Hikvision DS-K1T804BMF Fingerprint Access Control Terminal

The DS-K1T804BMF from Hikvision is an advanced fingerprint access control terminal featuring a 2.4-inch LCD display and optical fingerprint recognition module, designed to provide integrated management of access control and time attendance functions for commercial and industrial facilities. With capacity for 3,000 fingerprints, 3,000 cards, and 100,000 events, this Linux-based terminal delivers comprehensive security management while supporting both TCP/IP wired networking and WiFi connectivity.

Engineered with built-in Mifare 1 card reader and Wiegand interface support, this versatile terminal offers multiple authentication options including fingerprint biometrics (1:1 and 1:N comparison) and card-based access with recognition speeds under 1 second. The system features alarm input/output interfaces, lock control output, and door contact monitoring, making it ideal for office buildings, warehouses, manufacturing facilities, and other environments requiring robust access control with integrated time and attendance tracking.

Key Features:

• Optical fingerprint module with 3,000 fingerprint capacity and <1s recognition speed; supports both 1:1 and 1:N comparison modes with FAR ≤0.001% and FRR ≤0.01%
• Dual network connectivity via TCP/IP (10/100Mbps) and WiFi enables flexible installation; built-in Mifare 1 card reader supports 3,000 cards with 0-4.5cm reading distance
• Integrated time attendance and access control management with 100,000 event storage; includes alarm I/O, Wiegand interface, and supports ISUP5.0 and ISAPI protocols
