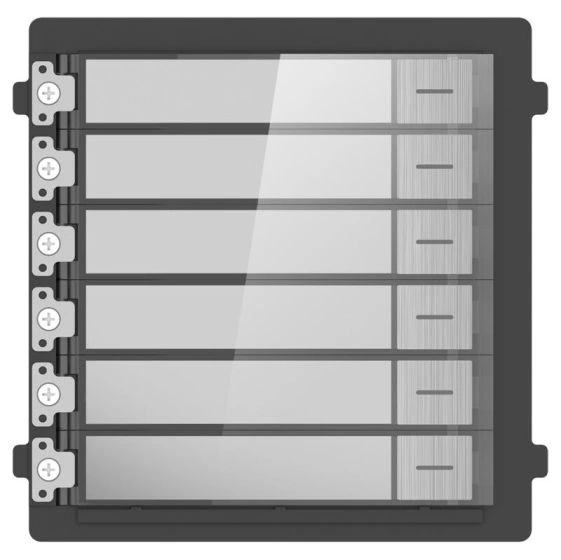

Hikvision DS-KD-KK/S Nametag Module for KD8 Series Modular Door Station with 6 Call Buttons

Hikvision DS-KD-KK/S Nametag Module for KD8 Series Modular Door Station with 6 Call Buttons

The Hikvision DS-KD-KK/S is a professional nametag module designed for KD8 Series Pro modular door stations. Featuring six call buttons with backlight compensation, this module enables one-touch dialing for up to six residents or units, making it ideal for multi-tenant buildings, apartment complexes, and commercial properties. The stainless steel construction ensures durability and vandal resistance in outdoor installations. IP65 and IK07 protection ratings guarantee reliable operation in harsh weather conditions, withstanding dust, water jets, and impact. Operating temperature range from -40°C to 55°C (-40°F to 131°F) ensures functionality in extreme climates.

The module's backlight compensation technology ensures clear visibility of nametags in all lighting conditions, from bright sunlight to nighttime operation. Powered by other modules at 12 VDC with minimal power consumption (0.8W), the DS-KD-KK/S integrates seamlessly into modular door station configurations. The compact design (3.87" × 3.95" × 1.33") supports both flush mounting and surface mounting installation options. Network connectivity via 10/100 Mbps RJ-45 interface and dual RS-485 ports enables communication with main units and other system components. Linux-based embedded processor ensures reliable operation and easy integration with Hikvision's video intercom ecosystem.

Key Features:

• 6 call buttons with backlight compensation; enables one-touch dialing for multi-tenant buildings with clear visibility day and night
• Stainless steel construction with IP65 and IK07 protection; vandal-resistant design for harsh outdoor environments
• Extended temperature range: -40°C to 55°C (-40°F to 131°F); reliable operation in extreme weather conditions
• Modular design with flush and surface mounting options; easy integration into KD8 Series door station systems
• 10/100 Mbps network and dual RS-485 connectivity; seamless communication with video intercom systems and access control
