Hikvision DS-K1102E Card Reader

Brand:
Part Number: DS-K1102E
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Discontinued
$84.66
Technical Support Technical Support

Customers Also Viewed

Description

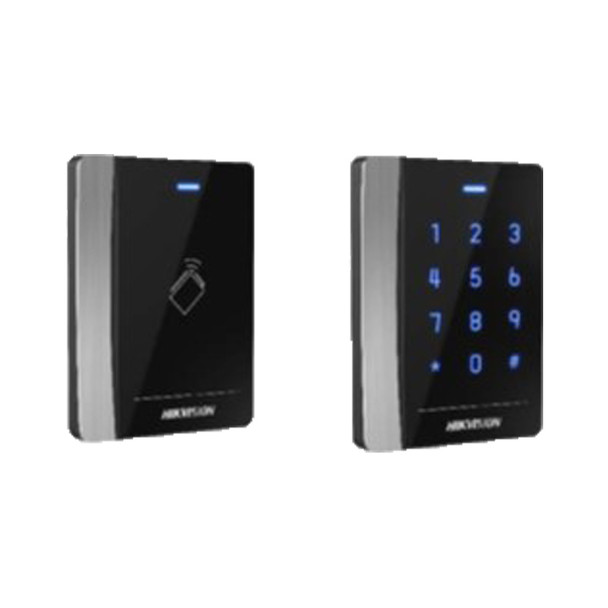

Hikvision DS-K1102E Card Reader

Key Features:

  • Processor: 32‐bit
  • Reading Frequency: 125KHz
  • Reading distance: 1.18 to 1.96"
  • Communication method: Wiegand and RS-485 communication
  • LCD Display: No
  • LED lights: Power Indicator; Status LED Indicator
  • ID Settings: Setting by the DIP Switch on the Main Board
  • Keypad: No Keypad (DS‐K1102E) Keypad with 12 Keys (0 to 9, *, #) (DS‐K1102EK)
  • Power Supply: 12V DC
  • Working Current: ≤500mA
  • Power Consumption: ≤6W
  • Working humidity: 10% to 90% (Non Condensing)
  • Dimensions: 121x86.5x14mm (4.76x3.41x0.55")
  • Weight: ≤ 0.14Kg
  • Protection Level: IP 64
  • Installing Method: Applied for 86 & 120 Gang Box
  • Audio Aler: tBeeper
  • Certifications: FCC, CE
  • Working Temperature: ‐40°C to +70°C (‐40°F to +158°F)
