Description

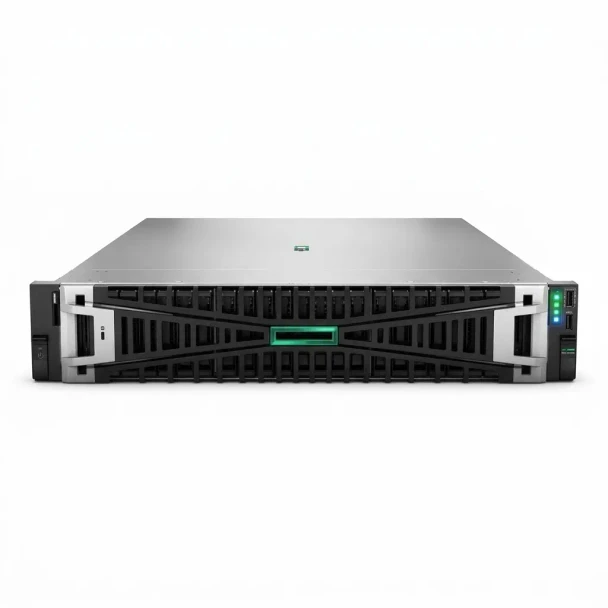

IQSight Bosch MHW-S380RB-SC 2U Standard Application Server with Intel Xeon Silver 4410Y, 32GB RAM and Windows Server OS
The Bosch MHW-S380RB-SC is a high-performance standard application management server built on the HPE ProLiant DL380 Gen11 8SFF platform. It is designed for demanding video applications, offering the processing power and memory needed to run management and application services in medium- to enterprise-sized surveillance deployments.
A 12-core Intel Xeon Silver 4410Y processor and 32GB of DDR5-4800 registered smart memory deliver headroom for multi-site video workloads. The operating system runs from an HPE NS204i boot device with two 480GB M.2 NVMe SSDs mirrored in RAID-1, protecting the system against a single drive failure. An embedded Broadcom BCM57416 dual-port 10GbE BASE-T OCP3 adapter provides high-speed network connectivity.
The 2U rack-mount chassis installs quickly on tool-free sliding rails, and two hot-plug 1000W Flex Slot Titanium power supplies provide redundant power. HPE iLO with Intelligent Provisioning, Active Health System monitoring and 3D thermal sensing simplify remote management and keep the server running efficiently. The Bosch server ships with a Microsoft Windows Server standard edition 64-bit license, an American English keyboard and a mouse, and is backed by HP 5/5/5 basic support.
Key Features:
- Intel Xeon Silver 4410Y 12-core 2.0GHz processor; handles demanding video management and application workloads.
- 32GB (1x32GB) DDR5-4800 registered smart memory; provides stable, ECC-protected performance for server applications.
- 2x 480GB M.2 NVMe SSD boot device in RAID-1; keeps the OS running if one boot drive fails.
- Dual-port 10GbE BASE-T OCP3 network adapter; moves high-bandwidth video traffic without network bottlenecks.
- 2x 1000W hot-plug Titanium redundant power supplies; maintains uptime during a power supply failure.
- 2U rack-mount chassis with tool-free sliding rails; fits standard 19-inch racks and speeds installation.
- HPE iLO with Intelligent Provisioning; enables remote monitoring, power control and configuration.
- Microsoft Windows Server standard edition 64-bit license included; ready for application software out of the box.
- HP 5/5/5 basic support (5 years parts, labor and onsite); reduces long-term ownership risk.
Downloads
Additional Information
|
Accessory Type:
|
Workstation
|
|
Dimensions:
|
17.54x3.44x26.75in
|
|
Input Voltage:
|
100-240VAC
|
|
Network Interface:
|
2x Rj-45 10Gbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Processor (CPU):
|
Intel Xeon Silver
|
|
RAM:
|
32GB
|
|
Rack Unit (U):
|
2U
|
|
SSD Capacity:
|
480GB
|
|
Storage Humidity:
|
5% to 95% RH
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
