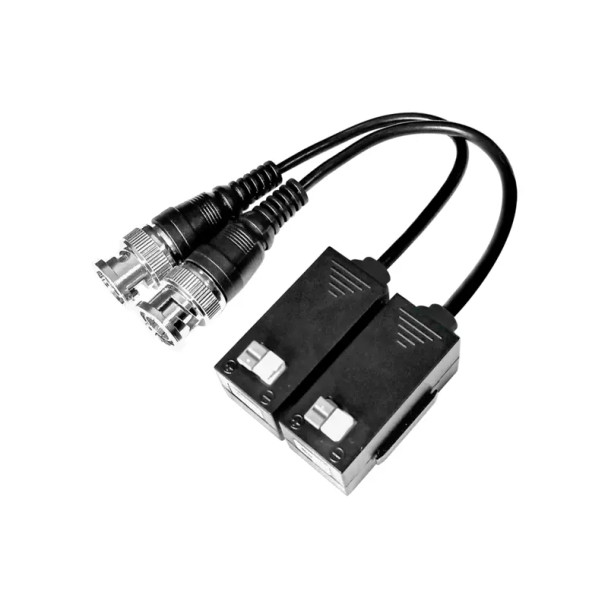

LTS LTAB4020NT Single Channel HD Passive Video Balun

LTS LTAB4020NT Single Channel HD Passive Video Balun

The LTAB4020NT video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The LTAB4020NT is compatible with all HD-TVI/CVI/AHD/CVBS analog cameras.

The LTAB4020NT has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Push-pin terminal block allows tool-less connection of UTP cable output. Used in pairs, the LTAB4020NT eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the LTAB4020NT allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The LTAB4020NT is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

Key Features:

• Real-time transmission over UTP cat5e/6
• No power required
• Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
• Please refer to “Transmission Distance Chart” Part to find out distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
• Male BNC connector with extended mini-coax pigtail
• Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
• Wave Filter Design, Anti-Static Design
• Lightning protection design Grade: â…¢
• 60 dB crosstalk and noise immunity
• Exceptional interference rejection
• ABS engineering plastic housing
