Description
LTS CMIP3C42WI-MDA 4MP Hybrid Light Outdoor Turret IP Security Camera, 4mm Fixed Lens, White - LTCMIP3C42WI-MDA
Key Features:
- High quality imaging with 4 MP resolution
- Smart Dual-Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Replacement of:
CMIP3C42W-MDA
Downloads
User Manual
LTS-Security-LTCMIP3C42WI-MDA-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
CMIP3C42WI-MDA
|
|
Analytics:
|
Intrusion Detection
Line Crossing
Motion Detection
|
|
Aperture:
|
F1.0
|
|
Audio Compression:
|
AAC-LC
G.711
G.726
MP2L2
MP3
PCM
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
CB
CE
FCC
IC
RCM
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ISUP
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
255.91
|
|

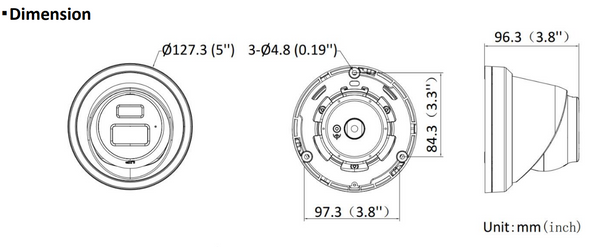

Dimensions:
|
127.3 x 96.3 mm (5 x 3.8 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
94.6
|
|
Field of View (Horizontal):
|
81.1
|
|
Field of View (Vertical):
|
44.7
|
|
Identify (ft):
|
22.97
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Saturation
Sharpness
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 Lux with Light
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
101.71
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
|
|
Recognize (ft):
|
49.21
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
HTTPS encryption
IP address filtering
Password protection
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
LTS Color 24/7
|
|
Specialized Camera Feature:
|
Color in Near-Total Darkness
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
