Description
LTS LTN8716D-P16N Platinum 16 Channel 4K NVR with 16 Built-in PoE Ports, Up to 12MP Recording, No Hard Drive Included
Key Features:
- Up to 16-ch IP camera inputs, plug & play with 16 power-overEthernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12- ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Provide MD2.0/VCA function from the NVR
Smart Function
- All channels support MD 2.0
- 1-ch facial recognition for video stream
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
- 16-ch synchronous playback
Network & Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- LTS Connect for easy network management
Replacement of:
LTN8716K-P16
Downloads
Datasheet
LTS-Security-LTN8716D-P16N-Datasheet-A1
Quick Start Guide
LTS-Security-LTN8716D-P16N-Quick-Start-Guide-A1
User Manual
LTS-Security-LTN8716D-P16N-User-Manual-A1
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722
G.726
AAC
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
CE
FCC
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
|
|
Connection Type:
|
Wired
|
|

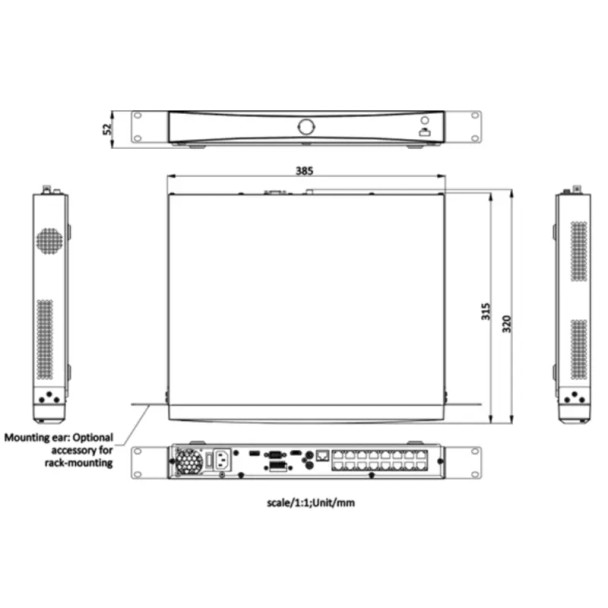

Dimensions:
|
385 x 315 x 52 mm (15.2 x 12.4 x 2.0 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Max Power Consumption:
|
15 Watts
|
|
Max. FPS and Resolution:
|
30fps at 12MP (4K)
|
|
Max. Incoming Bandwidth:
|
160Mbps
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
20 TB
|
|
Network Interface:
|
1x RJ-45
|
|
Number of PoE Ports:
|
16 PoE Ports
|
|
Outgoing Bandwidth:
|
160 Mbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
LTS Platinum Series
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Synchronous Playback:
|
16 Channel
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
