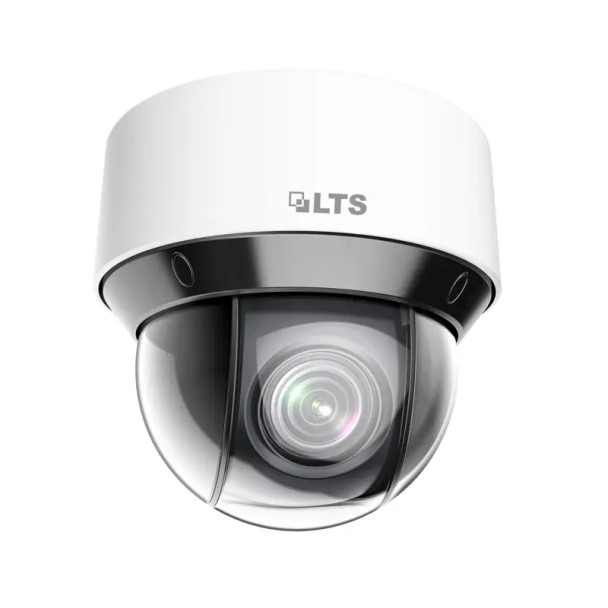

LTS LTPTZIP424W-X25IR 4MP Night Vision Outdoor PTZ IP Security Camera, 25x Optical Zoom
$885.00
✅ Help me pick a security camera
Free Shipping
Technical Support
2 Year Warranty
- Compression : H.265, H.265 Plus, H.264, H.264 Plus, MJPEG,
- Field of View (Horizontal) : 53.3°Field of View 2.6°Field of View
- Max. FPS and Resolution : 30fps at 2560 x 1440
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 4.8~120mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Protection Code : IP66
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.8"
- Aperture : F1.6
Description
LTS LTPTZIP424W-X25IR 4MP Night Vision Outdoor PTZ IP Security Camera, 25x Optical Zoom
PTZIP424W-X25IR 4 MP Network IR PTZ Camera adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
Key Features:
- High quality imaging with 4 MP resolution, up to 60 fps
- Excellent low-light performance via Ultra-Low Light technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25 × optical zoom allows for closer viewing of subjects in expansive areas
- Up to 164ft(50 m) IR range ensures safety at night
- Water and dust resistant (IP66)
- MD 2.0 - Human and Vehicle Detection
Downloads
User Manual
LTS-Security-LTPTZIP424W-X25IR-User-Manual-A1
Videos
View AllClose
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
PTZ
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
SDK
ISUP
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
Night (B/W)
Auto
|
|
Detect (ft):
|
7217.8
|
|
Dimensions:
|
169 x 161 mm (6.65 x 6.34 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
53.3
2.6
|
|
Identify (ft):
|
721.8
|
|
Lens Size:
|
4.8~120mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
24 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1440
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.005 Lux
|
|
Mounting:
|
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
2864.2
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Product Series:
|
LTS Platinum Series
|
|
Protection Code:
|
IP66
|
|
Recognize (ft):
|
1443.6
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/1-1/30000s
|
|
Special Technologies:
|
Ultra Low Light
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
2-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
