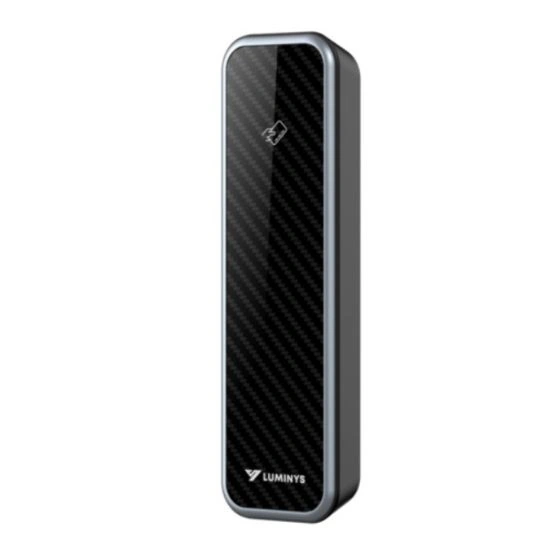

Luminys RD1BN Mullion Mount Bluetooth Access Reader

Luminys RD1BN Mullion Mount Bluetooth Access Reader

The Luminys RD1BN is a versatile Bluetooth access reader designed for modern access control applications. This mullion mount device supports both Bluetooth mobile credentials and MIFARE (IC) card reading, providing flexible authentication options for various facility types. With RS-485, Wiegand, and Bluetooth communication protocols, it integrates seamlessly with existing access control systems.

Built with a tempered glass and polycarbonate construction, this reader delivers IP66-rated protection against dust and heavy rain, making it suitable for both indoor and outdoor installations. The compact design features integrated LED indicators and a buzzer for real-time audio and visual feedback during user interactions.

The RD1BN operates on a wide temperature range from -22°F to 158°F, ensuring reliable performance in diverse environmental conditions. Its Bluetooth 5.0/5.2/BLE4.0 technology supports short, mid, and long-range reading distances up to 32.8 feet, while the MIFARE card reading distance reaches up to 2 inches.

Key Features:

• Bluetooth 5.0/5.2 and BLE4.0 support with reading distances up to 32.8 ft; enables contactless mobile credential access
• MIFARE (IC) card reading with 13.56 MHz frequency; provides traditional card-based authentication
• IP66-rated protection; ensures reliable operation in harsh outdoor environments
• Mullion mount housing with LED and buzzer; offers real-time visual and audio feedback
• RS-485 and Wiegand output interfaces; integrates with most access control panels
• Wide operating temperature range -22°F to 158°F; performs reliably in extreme conditions
• NDAA compliant; meets federal procurement security requirements
