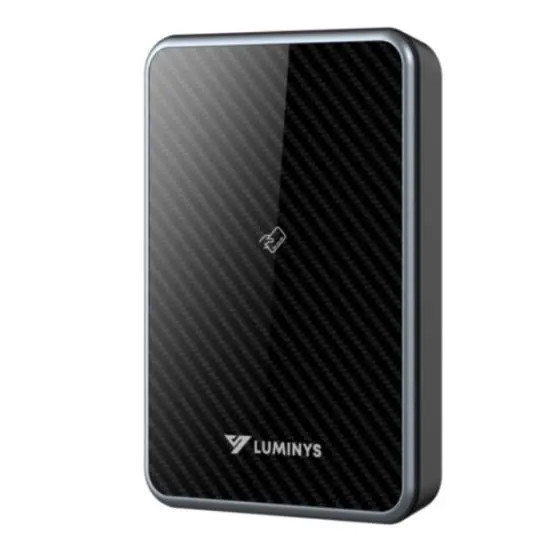

Luminys RD1CW Waterproof MIFARE Access Reader

Luminys RD1CW Waterproof MIFARE Access Reader

The Luminys RD1CW is a robust waterproof access reader designed for demanding indoor and outdoor access control applications. This device reads and issues MIFARE (IC) cards at 13.56 MHz frequency, providing reliable credential verification with a response time of just 0.1 seconds. The reader supports both RS-485 and Wiegand communication protocols for seamless integration with existing access control systems.

Constructed with durable polycarbonate and acrylic materials, the RD1CW features IP66-rated protection against dust ingress and heavy rain, making it ideal for outdoor installations and harsh environmental conditions. The integrated LED indicators and buzzer provide real-time audio and visual feedback during user interactions, enhancing the user experience.

Operating across a wide temperature range from -22°F to 158°F, this access reader performs reliably in extreme weather conditions. The compact form factor supports both 86 case mount and surface mount installation methods, offering flexibility for various deployment scenarios.

Key Features:

• MIFARE (IC) card reading with 13.56 MHz frequency; provides fast and reliable credential verification
• IP66-rated waterproof protection; ensures reliable operation in outdoor and harsh environments
• RS-485 and Wiegand communication protocols; integrates with most access control panels
• Integrated LED and buzzer feedback; offers real-time visual and audio user interaction
• Wide operating temperature range -22°F to 158°F; performs reliably in extreme conditions
• Polycarbonate and acrylic construction; delivers durability and weather resistance
• NDAA compliant; meets federal procurement security requirements
