Mobotix MX-A-SPA-HR MxSplitProtectHR DIN Rail module

Mobotix MX-A-SPA-HR MxSplitProtectHR DIN Rail module

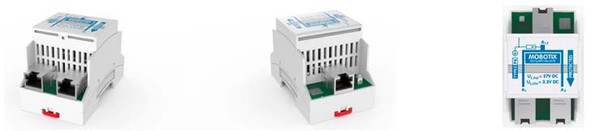

The MxSplitProtectHR DIN rail module is required (usually in the electrical cabinet), in addition to a PoE switch with PoE Mode A (for example, the MxSwitch) with two free ports, in order to connect two PoE-powered network devices (such as two MOBOTIX cameras) with the MxSplitProtect via one Ethernet installation cable with power. It transfers data and power from both PoE ports (each using only four wires) to the eight-wire installation cable, which is then split again between the MxSplitProtect Installation Box’s two RJ45 ports.

The MxSplitProtectHR DIN rail module offers the same split feature and 4-kV surge protection like the MxSplitProtect; however, it is not weatherproof. In addition, instead of an LSA terminal connector, there is an RJ45 socket for the supply line, which is designed to be a patch cable.

Key Features:

• Compatible with MxSplitProtect Installation Box (Mx-A-SPA):
• Hat rail module (for 35 mm DIN rails) with integrated 4-kV surge protection (Type 2 P4) for connection to two IP cameras/PoE devices using one Ethernet cable
• 1 RJ45 (2x 100Base-T) with ground clamp,
• 2 RJ45 Ethernet 100Base-T with PoE Mode A,
• 1 ground wire
• Only use in indoor areas, ambient temperature: 0°C to 40°C (32°F to 104°F)
• Housing color: gray

Optional Accessories (available separately):

• MxSwitch (MX-SWITCH1)
