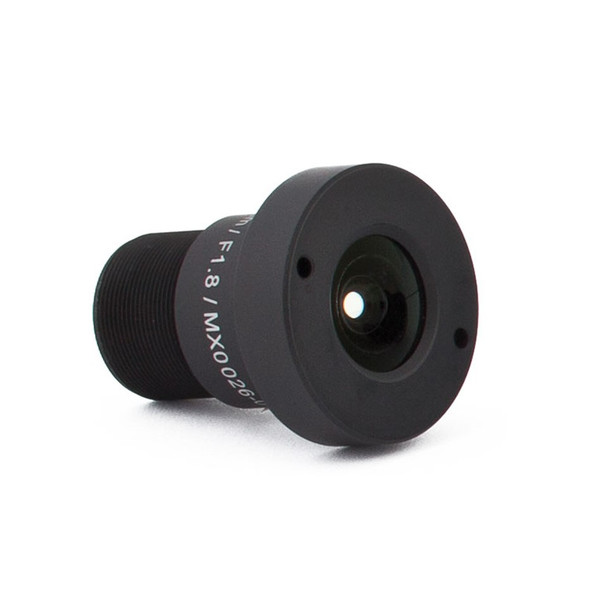

Mobotix MX-B036 Ultra Wide Lens B036, 3.6mm Fixed Lens
- Lens Type : Fixed Lens
- Lens Size : 3.6mm Lens
- Aperture : F1.8
- IR Corrected : No
Description
Mobotix MX-B036 Ultra Wide Lens B036 - 3.6mm Fixed Lens
HD lenses from Ultra Wide Angle (103°) to Super Tele (8°) for MOBOTIX cameras with 5 MP or 6 MP sensor.
Please note:
- In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.
- We do not recommend the Super Tele lens for p25!
- For lens MX-B500 it is necessary to use the long version of the lens cover which has to be ordered separately.
Lens |
Type |
Angle |
(former name) |
horizontal angle for 6MP sensors and format 4 : 3 |
[H x V] |
MX-B036 |
Ultra Wide 103° |
103° x 77° |
MX-B041 |
Super- Wide 90° |
90° x 67° |
MX-B061 |
Wide 60° |
60° x 45° |
MX-B079 |
Standard 45° |
45° x 34° |
MX-B119 |
Tele 31° |
31° x 23° |
MX-B237 |
Distance Tele 15° |
15° x 11° |
MX-B500 |
Super Tele 8° |
8° x 6° |
Downloads
Popular Search
Additional Information
Accessory Type: |
Camera Lens
|
Aperture: |
F1.8
|
IR Corrected: |
|
Lens Size: |
3.6mm
|
Lens Type: |
Fixed Lens
|
NDAA Compliance: |
NDAA Compliant
|
Warranty: |
2-year Manufacturer Warranty
|
