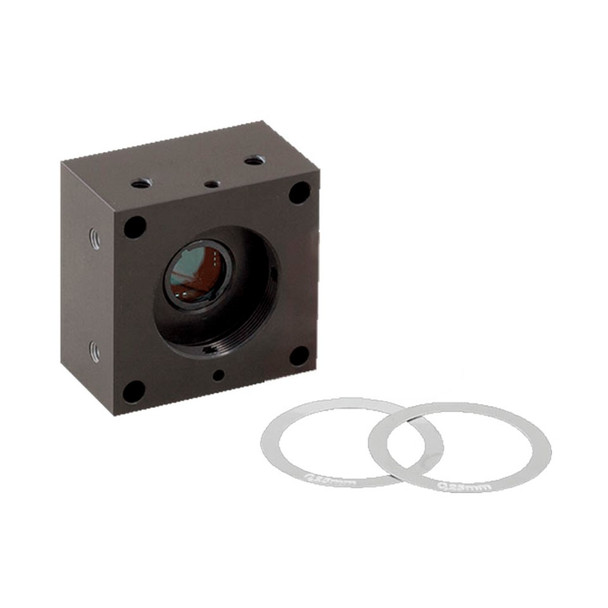

Mobotix MX-BFM-CS-D-6MP BlockFlexMount Sensor Module for CS Mount 6MP - Day, CS- Mount, Integrated microphone and status LEDs

Mobotix MX-BFM-CS-D-6MP BlockFlexMount Sensor Module for CS Mount 6MP

The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.

• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• BlockFlexMount contains a microphone (lens not included)
• Protection class IP30 (protected against access with a tool);
• Ambient temperature range: 0°C to +50°C/32°F to 122°F

Key features:

• Suitable for: S15
• For standard lenses with CS mount (e.g., MX-B045-100-CS), Moonlight sensor day, 6MP (3072 x 2048)
• Operating conditions: IP30, 0 to 50°C (32 to 122°F)
• Integrated microphone and status LEDs
• Camera connection via MOBOTIX sensor cable (to be ordered individually)
