Mobotix MX-Door2-INT-ON-PW On-Wall Mounting Door Master - Weatherproof, Security Door Opener, IP20

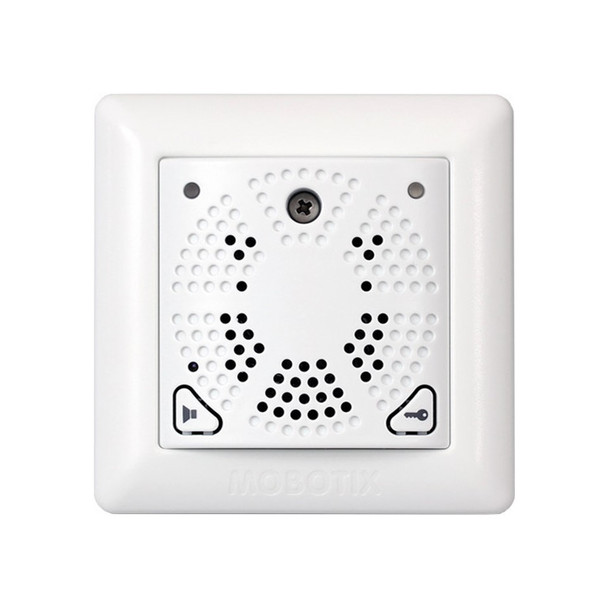

Mobotix MX-Door2-INT-ON-PW On-Wall Mounting DoorMaster

Key Features of Mobotix MX-Door2-INT-ON-PW

• Security Door Opener with integrated access code memory for on-wall mounting
• Complete set including DoorMaster module, on-wall housing, three device frames, neutral housing covering, battery pack and mounting parts
• Suitable for: IP Video Door Station with T2x and S1x as door camera
• Built-in backup power supply (battery) for access modules
• Doorbell
• Direct connection and power supply for electric Door Opener und door sensors
• Interface und power supply: MxBus

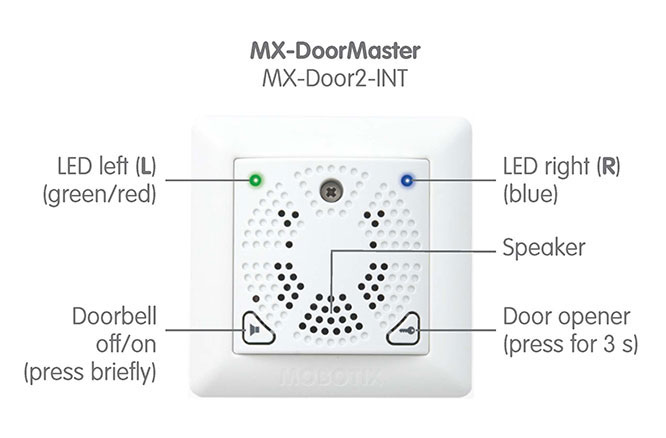

• Two status LEDs, two function buttons, integrated
• Speaker (doorbell)
• Two galvanically separated inputs (AC/DC, selfpowered up to 48 V)
• Isolated relay output (AC/DC, 24 V/1 A) or port for standard door openers (6 to 12 V AC)
• Outlet for MOBOTIX antitheft protection (12 V DC)
• Protection class: IP20
• Ambient temperature: -5 to 40°C / 23 to 104 °F
• Color: white
