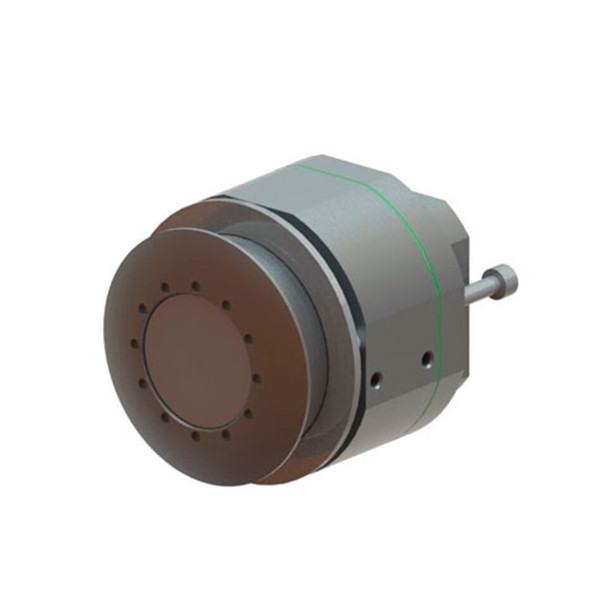

Mobotix Mx-O-SMA-TS-R079 FlexMount S15 Thermal Sensor Module with Thermal Radiometry - 7.9mm Fixed Lens

Mobotix Mx-O-SMA-TS-R079 FlexMount S15 Thermal Sensor Module with Thermal Radiometry

The modular design of the S15 system platform ensures maximum flexibility for the MOBOTIX thermographic camera.

In combination with the camera firmware version 4.3.4.66 or higher, every previously delivered S15 can operate with TR thermal sensor modules and be converted into a high-end thermographic camera.

• High-end thermografic camera with thermal sensor of typically 50 mK and a temperature measuring range of -40 to +550°C/-40 to +1022°F
• The thermal sensor is capable of detecting even in complete darkness and/or through smoke, smog, or a thin plastic screen (limited during thick fog).
• Thermal images for detection are an ideal addition to systems with standard image sensors (for identification).
• The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves, etc.
• Thermal technology coverage is largely independent of distance.

Key features:

• Thermal Sensor Module TR for the S15
• Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F)
• NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second
• Germanium Lens (included): B079 equivalent, horizontal/vertical image angle 45°/32°
• Image size: 336 x 252 pixels (can be scaled up to 6MP)
• IP66, -30 to 60°C (-22 to 140°F)
• Housing: Black anodized aluminum
• Camera connection via
• MOBOTIX sensor cable (max. 3 m/9.8ft, to be ordered individually)
• Made in Germany

*Cameras with thermographic image sensors ("thermal cameras") are subject to the special export regulations of the U.S.A. and the ITAR (International Traffic in Arms Regulation)
