Description

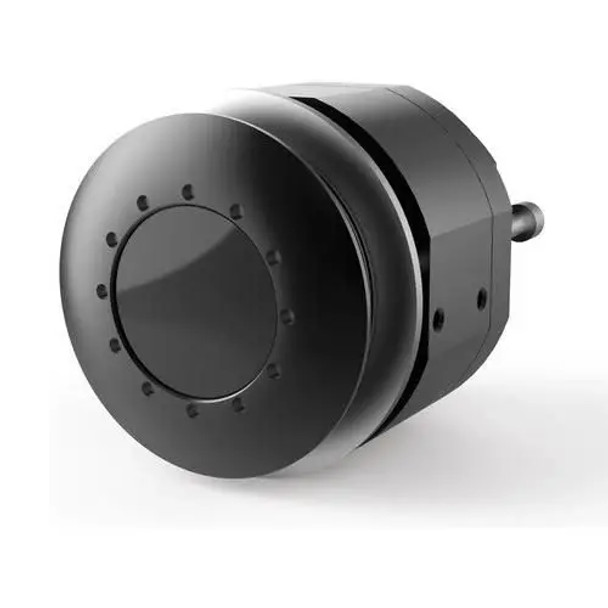

Mobotix Mx-O-SMA-TS-T119 336x252 Thermal Sensor Module with B119 Tele Lens, 25° FOV for S15/S16
The Mobotix Mx-O-SMA-TS-T119 is a Thermal Sensor Module with B119 Tele Lens designed for use with MOBOTIX's S15 and S16 cameras. This advanced sensor features an 11.9mm fixed lens that offers a focused 25° horizontal field of view, capturing clear thermal images in the 7.5-13.5µm IR range.
Its robust anodized aluminum housing is IP66-rated, ensuring it can withstand outdoor conditions while providing exceptional performance. The module's 336 x 252 resolution can be scaled up to 6MP, providing high-quality thermal imagery for better analysis and focused thermal imaging applications.
Key Features:
- 336 x 252 Resolution Scalable to 6MP; providing high-quality thermal imagery for better analysis and detailed monitoring
- B119 Tele Lens (11.9mm); offers enhanced focal length for detailed thermal imaging and targeted surveillance
- 25° Horizontal Field of View; allows for focused thermal imaging making it ideal for monitoring specific areas effectively
- IP66-Rated Anodized Aluminum Housing; suitable for outdoor use ensuring longevity and reliability in various weather conditions
- IR Range 7.5-13.5µm; optimized spectral range for effective thermal imaging and heat signature detection
- S15/S16 Camera Compatibility; designed specifically for seamless integration with MOBOTIX camera systems
Additional Information
|
Accessory Type:
|
Sensor Module
|
|
Field of View (Horizontal):
|
25
|
|
Lens Size:
|
11.9mm
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
336 x 252
|
|
Sensor Type:
|
Thermal
|
