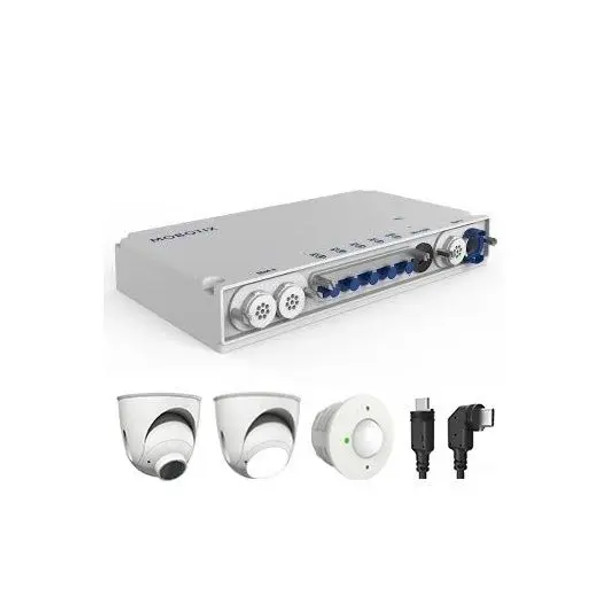

Mobotix Mx-S74TA-B336R150-EN54 S74A Thermal Camera System with 336x256 CIF Thermal Sensor & 4K UHD Support

Mobotix Mx-S74TA-B336R150-EN54 S74A Thermal Camera System with 336x256 CIF Thermal Sensor & 4K UHD Support

The Mx-S74TA-B336R150-EN54 from Mobotix delivers professional thermal imaging capabilities with its CIF 336x256 pixel thermal sensor and 25° x 19° field of view. This comprehensive EN54-compliant bundle combines advanced thermographic imaging with high-definition video capabilities through the modular S74A IP camera platform.

Built on the robust MOBOTIX 7 system with ONVIF-S/T compliance, this system provides versatile streaming options including H.264/H.265, MxPEG+ and M-JPEG formats. The impressive 120dB Wide Dynamic Range ensures optimal image quality in challenging lighting conditions, while the IP66/IK10-rated aluminum housing withstands extreme environmental conditions from -40°C to 65°C.

The modular design enables future expansion with additional functional and optical sensor modules, making it ideal for specialized surveillance applications requiring both thermal and optical imaging. With built-in 8GB microSD storage, PoE+ power supply, and comprehensive connectivity options, this bundle provides complete thermal surveillance deployment capability.

Key Features:

• CIF Thermal Sensor (336x256 pixels) with 25° x 19° FOV; provides precise thermal imaging with medium field of view for focused heat signature detection.
• Thermal Radiometry 25° x 19°; enables accurate temperature measurement and thermal analysis with medium-range coverage ideal for perimeter monitoring and building surveillance.
• 4K UHD Image Support (3840 x 2160 pixels); delivers ultra-high definition optical imaging through compatible sensor modules for detailed visual surveillance.
• 120dB Wide Dynamic Range; ensures excellent image quality in high-contrast lighting conditions with balanced exposure across bright and dark areas.
• ONVIF-S/T Compliant MOBOTIX 7 Platform; offers broad compatibility with third-party systems and multiple streaming format support for flexible integration.
• IP66/IK10 Environmental Protection; provides reliable operation in harsh weather conditions and protects against vandalism and impact damage.
• Extreme Temperature Operation (-40°C to 65°C); maintains consistent performance in challenging environmental conditions from arctic cold to desert heat.
• Modular Expansion Capability; supports connection of up to two additional functional and optical sensor modules for customized surveillance solutions.
• Built-in 8GB MicroSD Storage; enables local recording capabilities for MxPEG+ format without requiring external storage systems.
• PoE+ Power Supply (25W max); simplifies installation with single-cable power and data transmission using standard PoE+ infrastructure.
