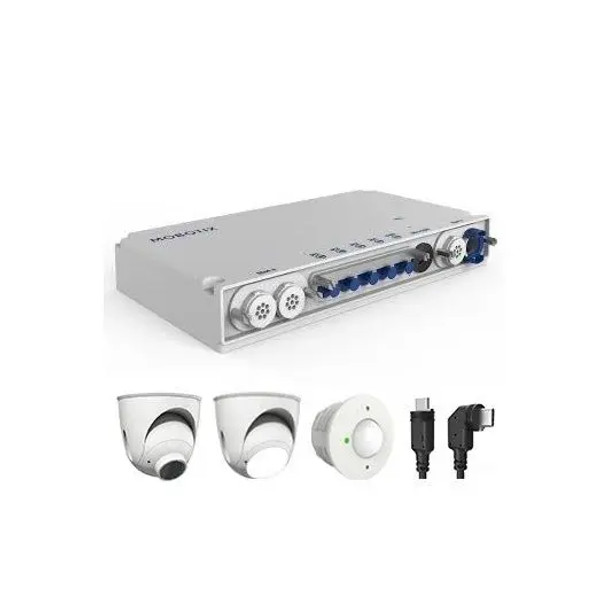

Mobotix Mx-S74TA-B640R150-EN54 S74A Thermal Camera System with 640x480 VGA Thermal Sensor & 4K UHD Support

Mobotix Mx-S74TA-B640R150-EN54 S74A Thermal Camera System with 640x480 VGA Thermal Sensor & 4K UHD Support

The Mx-S74TA-B640R150-EN54 from Mobotix delivers superior thermal imaging capabilities with its high-resolution VGA 640x480 pixel thermal sensor and focused 32° x 26° field of view. This comprehensive EN54-compliant bundle combines advanced thermographic imaging with high-definition video capabilities through the modular S74A IP camera platform.

Built on the robust MOBOTIX 7 system with ONVIF-S/T compliance, this system provides versatile streaming options including H.264/H.265, MxPEG+ and M-JPEG formats. The impressive 120dB Wide Dynamic Range ensures optimal image quality in challenging lighting conditions, while the IP66/IK10-rated aluminum housing withstands extreme environmental conditions from -40°C to 65°C.

The modular design enables future expansion with additional functional and optical sensor modules, making it ideal for specialized surveillance applications requiring both thermal and optical imaging. With built-in 8GB microSD storage, PoE+ power supply, and comprehensive connectivity options, this bundle provides complete thermal surveillance deployment capability.

Key Features:

• VGA Thermal Sensor (640x480 pixels) with 32° x 26° FOV; provides high-resolution thermal imaging with narrow field of view for precision targeting and detailed long-range heat signature analysis.
• Thermal Radiometry 32° x 26°; enables focused temperature measurement with narrow coverage ideal for long-distance target monitoring and precise thermal analysis applications.
• 4K UHD Image Support (3840 x 2160 pixels); delivers ultra-high definition optical imaging through compatible sensor modules for detailed visual surveillance.
• 120dB Wide Dynamic Range; ensures excellent image quality in high-contrast lighting conditions with balanced exposure across bright and dark areas.
• ONVIF-S/T Compliant MOBOTIX 7 Platform; offers broad compatibility with third-party systems and multiple streaming format support for flexible integration.
• IP66/IK10 Environmental Protection; provides reliable operation in harsh weather conditions and protects against vandalism and impact damage.
• Extreme Temperature Operation (-40°C to 65°C); maintains consistent performance in challenging environmental conditions from arctic cold to desert heat.
• Modular Expansion Capability; supports connection of up to two additional functional and optical sensor modules for customized surveillance solutions.
• Built-in 8GB MicroSD Storage; enables local recording capabilities for MxPEG+ format without requiring external storage systems.
• PoE+ Power Supply (25W max); simplifies installation with single-cable power and data transmission using standard PoE+ infrastructure.
