Technical Support
2 Year Warranty
Mount & Bracket
Housing Enclosure
Stainless Steel

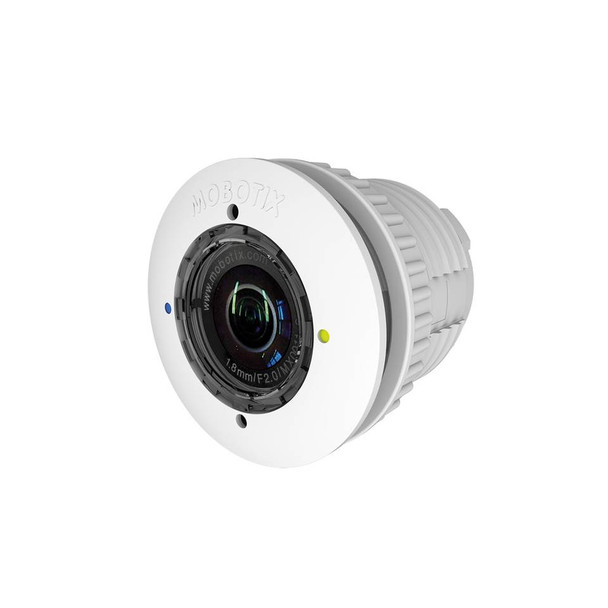

The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
| Megapixel | Lens Unit | Name | Focal Lenght | Horizontal Angle | Vertical Angle | Aperture | |
| 6MP | L10 | Fisheye | B016 | 1.6mm | 180 | 180 | 2 |
| 6MP | L20 | Super Wide | B036 | 3.6mm | 105 | 77 | 1.8 |
| 6MP | L22 | Super Wide | B041 | 4.1mm | 90 | 67 | 1.8 |
| 5MP | L25 | Super Wide | 4mm | 82 | 61 | 1.8 | |
| 6MP | L32 | Wide Angle | B061 | 6mm | 60 | 45 | 1.8 |
| 5MP | L38 | Wide Angle | 6mm | 55 | 41 | 1.8 | |
| 6MP | L43 | Wide Angle | B079 | 8mm | 45 | 34 | 1.8 |
| 5MP | L51 | Wide Angle | 8mm | 40 | 30 | 1.8 | |
| 6MP | L65 | Tele | B119 | 12mm | 31 | 23 | 1.8 |
| 5MP | L76 | Tele | 12mm | 27 | 20 | 1.8 | |
| 6MP | L135 | Tele | B237 | 25mm | 15 | 11 | 1.8 |
| 5MP | L160 | Tele | 25mm | 13 | 10 | 1.8 | |
| 6MP | L270 | Super Tele | B500 | 50mm | 8 | 6 | 2.5 |
|
Accessory Type:
|
Sensor Module
|
|
Aperture:
|
F1.8
|
|
Lens Size:
|
4.1mm
|
|
Lens Type:
|
Fixed Lens
|
|
Warranty:
|
2-year Manufacturer Warranty
|
Mount & Bracket
Housing Enclosure
Stainless Steel
