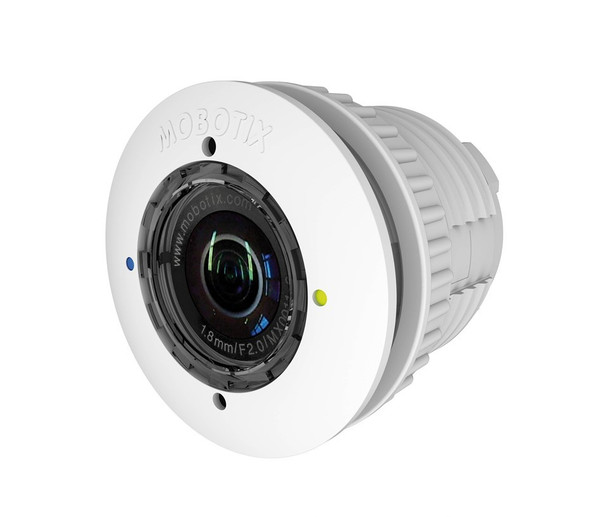

Mobotix MX-SM-N23-LPF-PW-F1.8 5MP Sensor Module - For S15 and M15, Fixed Lens, L23-F1.8 Night, Weatherproof, Integrated microphone and status LEDs
Discontinued
$236.00
Technical Support
2 Year Warranty
- Lens Type : Fixed Lens
- Lens Size : 25mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.5" Sensor
- Sensor Size : 1/2.5"
- Aperture : F1.8
Related Products
Mobotix MX-Q24M-Vandal-ESMA Outdoor Matt Vandalism Housing - for Q2x Series, Stainless Steel, Weatherproof, Vandal Proof
MX-Q24M-Vandal-ESMA
$254.13
- Material : Stainless Steel
- Environmental : Outdoor
Housing Enclosure
Stainless Steel
Mobotix MX-OPT-IC In-Ceiling Set - Q22/A24 & D22/D24 Security Camera
MX-OPT-IC
$123.93
Mount & Bracket
Customers Also Viewed
Discontinued
Mobotix MX-SM-N76-PW-F1.8 5MP Sensor Module - For S15 and M15, 12mm Fixed Lens, L76-F1.8 Night, Weatherproof, Integrated microphone and status LEDs
MX-SM-N76-PW-F1.8
$120.87
- Lens Type : Fixed Lens
- Lens Size : 12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.5" Sensor
- Sensor Size : 1/2.5"
- Aperture : F1.8
Sensor Module
Samsung SLA-2M2400Q 2MP Lens Module for PNM-9000VQ
SLA-2M2400Q
$70.85
- Lens Type : Fixed Lens
- Lens Size : 2.4mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Color : Black
- Mount Type : M12
- Sensor Size : 1/2.8"
- Aperture : F2.0
Camera Lens
Black
Mobotix MX-B119 Tele Lens B119 - 11.9mm Fixed Lens, f/1.8, 31-degree x 23-degree (up to 5MP resolution) and 36-degree x 24.5-degree (6MP resolution)
MX-B119
$72.45
- Lens Type : Fixed Lens
- Lens Size : 11.9mm Lens
- Aperture : F1.8
Camera Lens
Mobotix MX-B041 Super Wide Lens B041, 4.1mm Fixed Lens
MX-B041
$72.45
- Lens Type : Fixed Lens
- Lens Size : 4.1mm Lens
- Aperture : F1.8
Camera Lens
Mobotix MX-OPT-F1.8-L65-L76 Telephoto High Definition Premium Lens - 27-degree
MX-OPT-F1.8-L65-L76
$103.02
- Aperture : F1.8
Camera Lens
Samsung SLA-2M6000D PNM-7000VD Lens module
SLA-2M6000D
$70.84
- Lens Type : Fixed Lens
- Lens Size : 6mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Sensor Size : 1/2.8"
Camera Lens
Samsung SLA-2M3600P PNM-9320VQP Lens module
SLA-2M3600P
$75.73
- Lens Type : Fixed Lens
- Lens Size : 3.6mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Sensor Size : 1/2.8"
Camera Lens
Samsung SLA-2M2800P PNM-9320VQP Lens module
SLA-2M2800P
$75.55
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Sensor Size : 1/2.8"
Camera Lens
Samsung SLA-2M1200P PNM-9320VQP Lens module
SLA-2M1200P
$75.73
- Lens Type : Fixed Lens
- Lens Size : 12mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Sensor Size : 1/2.8"
Camera Lens
Samsung SLA-2M2800D 2.8mm Lens Module for Samsung PNM-7000VD
SLA-2M2800D
$78.09
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Color : Black
- Sensor Size : 1/2.8"
- Aperture : F2.0
Camera Lens
Black
Samsung SLA-5M4600Q 5MP Lens Module for PNM-9000VQ
SLA-5M4600Q
$196.61
- Lens Type : Fixed Lens
- Lens Size : 4.6mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/1.8" Sensor
- Color : Black
- Mount Type : M12
- Sensor Size : 1/1.8"
- Aperture : F1.6
Camera Lens
Black
Samsung SLA-2M3600Q 2MP Lens Module for PNM-9000VQ
SLA-2M3600Q
$74.49
- Lens Type : Fixed Lens
- Lens Size : 3.6mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Color : Black
- Mount Type : M12
- Sensor Size : 1/2.8"
- Aperture : F2.0
Camera Lens
Black
Samsung SLA-T4680DW 2MP Door Jamb Lens Module - White
SLA-T4680DW
$235.75
- Lens Type : Fixed Lens
- Lens Size : 4.6mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Color : White
- Environmental : Indoor
- Sensor Size : 1/2.8"
- Aperture : F2.5
Camera Lens
White
Hikvision DS-2CD6412FWD-L20 L-Shaped Pinhole Lens Module
DS-2CD6412FWD-L20
$130.00
- Lens Type : Fixed Lens
- Lens Size : 3.7mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Color : Black
- Sensor Size : 1/3"
Camera Lens
Black
Samsung SLA-T4680V 2MP 4.6mm Fixed Lens Module
SLA-T4680V
$190.29
- Lens Type : Fixed Lens
- Lens Size : 4.6mm Lens
Camera Lens
Bosch LVF-5005N-S1250 5MP C-mount 12-50mm Varifocal Security Camera Lens
LVF-5005N-S1250
$244.01
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 1.8~3mm Lens
- Sensor Type : CCD
- Sensor Size : 1/2.5" Sensor
- Mount Type : C-Mount
- Sensor Size : 1/2.5"
- Aperture : F1.8
Camera Lens
Bosch LVF-8008C-P0413 12MP 4-13mm CS mount Varifocal Security Camera Lens
LVF-8008C-P0413
$272.43
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 4.3~13mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/1.8" Sensor
- Mount Type : CS-Mount
- Sensor Size : 1/1.8"
Camera Lens
Samsung SLA-M2890PN Security Camera Lens - Compatible with 3MP Security Camera Lenses
SLA-M2890PN
$209.31
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 2.8~9mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.8" Sensor
- Mount Type : C-Mount
- Sensor Size : 1/2.8"
- Aperture : F1.2
Camera Lens
Bosch LVF-5005C-S1803 5MP SR-Iris IR Corrected Security Camera Lens
LVF-5005C-S1803
$219.78
- Lens Type : Varifocal (Manual Zoom) Lens
- Lens Size : 1.8~3mm Lens
- Sensor Type : CCD
- Sensor Size : 1/2.5" Sensor
- Mount Type : CS-Mount
- Sensor Size : 1/2.5"
- Aperture : F1.8
- IR Corrected : IR Corrected
Camera Lens
Description
Mobotix MX-SM-N23-LPF-PW-F1.8 5MP Sensor Module
The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Key Features of Mobotix MX-SM-N23-LPF-PW-F1.8
- Suitable for: S15, M15,
- Max. image size: 5 megapixels
- HD Premium lens L23 (f/1.8, horizontal image angle 92°),
- 25mm Fixed Lens,
- With infrared light
- Image sensor: 1/2.5“ CMOS,
- B/W (night),
- IP66, -30 to 60°C (-22 to 140°F)
- Color: White
| Megapixel | Lens Unit | Name | Focal Lenght | Horizontal Angle | Vertical Angle | Aperture | |
| 6MP | L10 | Fisheye | B016 | 1.6mm | 180 | 180 | 2 |
| 6MP | L20 | Super Wide | B036 | 3.6mm | 105 | 77 | 1.8 |
| 6MP | L22 | Super Wide | B041 | 4.1mm | 90 | 67 | 1.8 |
| 5MP | L25 | Super Wide | 4mm | 82 | 61 | 1.8 | |
| 6MP | L32 | Wide Angle | B061 | 6mm | 60 | 45 | 1.8 |
| 5MP | L38 | Wide Angle | 6mm | 55 | 41 | 1.8 | |
| 6MP | L43 | Wide Angle | B079 | 8mm | 45 | 34 | 1.8 |
| 5MP | L51 | Wide Angle | 8mm | 40 | 30 | 1.8 | |
| 6MP | L65 | Tele | B119 | 12mm | 31 | 23 | 1.8 |
| 5MP | L76 | Tele | 12mm | 27 | 20 | 1.8 | |
| 6MP | L135 | Tele | B237 | 25mm | 15 | 11 | 1.8 |
| 5MP | L160 | Tele | 25mm | 13 | 10 | 1.8 | |
| 6MP | L270 | Super Tele | B500 | 50mm | 8 | 6 | 2.5 |
Downloads
Document
mobotix-Lens-Table-A1.pdf
Popular Search
Additional Information
|
Accessory Type:
|
Sensor Module
|
|
Aperture:
|
F1.8
|
|
Lens Size:
|
25mm
|
|
Lens Type:
|
Fixed Lens
|
|
Sensor Size:
|
1/2.5"
|
|
Sensor Type:
|
CMOS
|
|
Warranty:
|
2-year Manufacturer Warranty
|
