Mobotix MX-SM-N270-BL-6MP 6MP Sensor Module - For S15 and M15, Fixed Lens, L270-F1.8 Night, Weatherproof, Integrated microphone and status LEDs

Brand: Mobotix
Part Number: MX-SM-N270-BL-6MP
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Discontinued
  • Mobotix MX-SM-N270-BL-6MP-01
  • 2-Year Limited Manufacturer Warranty
$172.00
Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Lens Type : Fixed Lens
  • Lens Size : 25mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.5" Sensor
  • Sensor Size : 1/2.5"
  • Aperture : F1.8
  • IR Corrected : No

Customers Also Viewed

Description

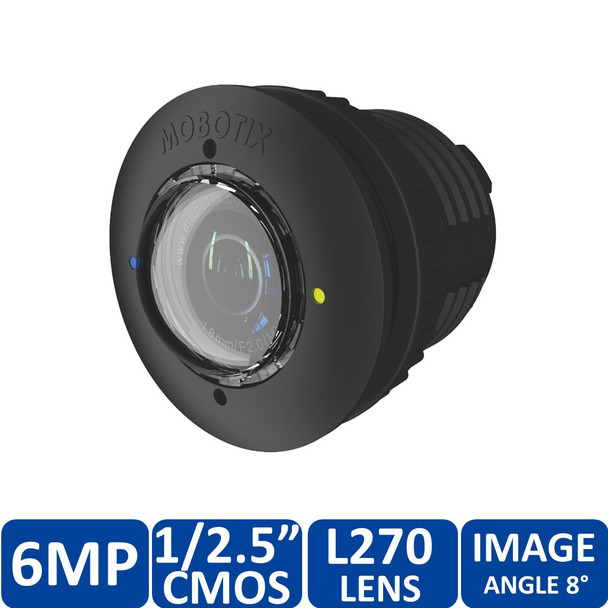

Mobotix MX-SM-N270-BL-6MP 6MP Sensor Module

The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.

Key Features:

  • Suitable for: S15, M15,
  • Max. image size: 6MP (3072 x 2048)
  • HD Premium lens L270 (f/1.8, horizontal image angle 8°),
  • 25mm Fixed Lens,
  • Image sensor: 1/2.5“ CMOS
  • B/W (night),
  • Integrated microphone and status LEDs,
  • IP66 Certificate
  • Color: Black

Megapixel Lens Unit Name Focal Lenght Horizontal Angle Vertical Angle Aperture
6MP L10 Fisheye B016 1.6mm 180 180 2
6MP L20 Super Wide B036 3.6mm 105 77 1.8
6MP L22 Super Wide B041 4.1mm 90 67 1.8
5MP L25 Super Wide 4mm 82 61 1.8
6MP L32 Wide Angle B061 6mm 60 45 1.8
5MP L38 Wide Angle 6mm 55 41 1.8
6MP L43 Wide Angle B079 8mm 45 34 1.8
5MP L51 Wide Angle 8mm 40 30 1.8
6MP L65 Tele B119 12mm 31 23 1.8
5MP L76 Tele 12mm 27 20 1.8
6MP L135 Tele B237 25mm 15 11 1.8
5MP L160 Tele 25mm 13 10 1.8
6MP L270 Super Tele B500 50mm 8 6 2.5

Downloads

All Security BrandsClose

Additional Information

Accessory Type:
Sensor Module
Aperture:
F1.8
IR Corrected:
Lens Size:
25mm
Lens Type:
Fixed Lens
Sensor Size:
1/2.5"
Sensor Type:
CMOS
Warranty:
2-year Manufacturer Warranty
