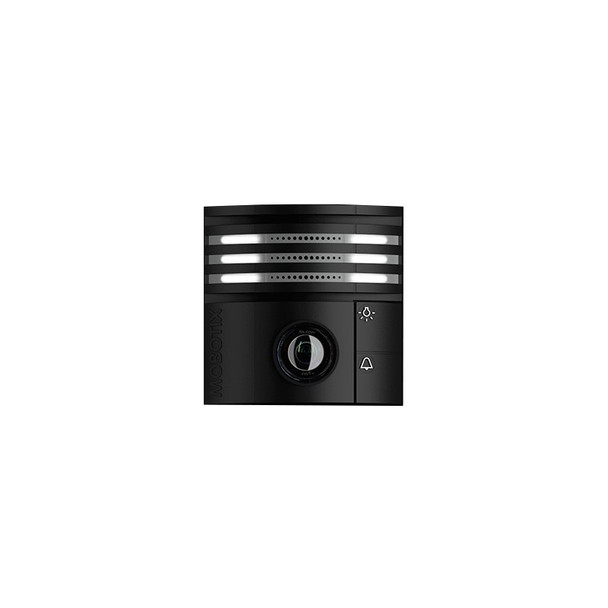

Mobotix Mx-T26B-6D016-b 6MP T26B Hemispheric IP Door Station Camera Module

Brand: Mobotix
Part Number: Mx-T26B-6D016-b
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Mobotix Access Control
Mobotix NDAA Compliant
NDAA Compliant Cameras
Discontinued
Free shipping over $300 Free Shipping
3 Year Warranty 3 Year Warranty
  • Field of View (Horizontal) : 180°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 1.6mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.8" Sensor
  • Color : Black
  • Environmental : Outdoor
  • Aperture : F2.0
  • Access Control Type : Door Station
  • Audio Support : Built-in Speaker Built-in Microphone

Related Products

Description

Mobotix Mx-T26B-6D016-b 6MP T26B Hemispheric IP Door Station Camera Module

The high-resolution, hemispheric IP Video Door Station from MOBOTIX is an innovative, powerful solution that is easy to install. The T26 is based on the VoIP/SIP Video Intercom standard. All the modules offered for outdoor areas are weatherproof and maintenance-free and can be used in temperatures ranging from -30°C to 50°C (-22°F to 140°F).

Key Features:

  • Hemispheric IP door station camera with 6 Megapixel Moonlight Sensor, color (day)
  • ONVIF S compliant Mx6 system platform (2nd generation) with H.264,
  • MxPEG+ and M-JPEG HD premium fisheye lens B016 (focal length 1.6 mm, f/2.0, 180° x 180°)
  • Max. image size: 6MP (3072 x 2048)
  • Weatherproof IP65, -30 to 50°C (-22 to 122°F)
  • Vandal Proof IK10
  • Internal DVR: 4 GB microSD
  • LED lighting strips,
  • Two buttons (doorbell, outdoor light),
  • Temperature sensor, shock detector, MxActivitySensor, MxAnalytics,
  • Ethernet patch cable 0.5 m/1.6ft
  • Interfaces: Ethernet 10/100 (RJ45 and LSA), MxBus, USB
  • Color: Black

Downloads

Popular Search

Mobotix Access Control
Mobotix NDAA Compliant
NDAA Compliant Cameras

Specifications

Technical Detail
Overall
Product Designation
T26B Hemispheric IP door station camera
Mx Ordercode
Mx-T26B-6D016-s
Camera Type
hemispheric Camera
Dual Camera
No
Manual Lens Alignment
No
Microphone
Yes
Speaker
Yes
Application Area
Indoor
Outdoor
MxBUS
Yes
Color Housing
Black
Technical Data
Ambient Temperature (°C)
-30...+50 °C (-22 ... 122 °F)
IP Class
IP65
IK Class
IK10
Certifications
  • EN55032:2012
  • EN55024:2010
  • EN50121-4:2015
  • FprEN61000-6-1:2015
  • EN61000-6-2:2015
  • EN61000-6-3:2007+A1:2011+AC:2012
  • EN61000-6-4:2007+A1:2011
  • EN60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
  • AS/NZS CISPR 32:2015
  • CFR47 FCC part15B
MTBF (h)
80,000
PIR
No
Audio
Microphone/ Loudspeaker, both 16bit/16kHz (HD-Wideband-Audio)
DVR
  • Camera-internal via microSD card
  • External on USB device
  • External on NAS
  • Full image recording regardless of live image zoom
  • MxFFS
  • Pre-alarm and post-alarm images
  • DVR monitoring with error notification
Video Phone
Yes
Protocols
IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722
Ethernet
Ethernet 10/100, IPv4/IPv6, MiniUSB, IO and RS232 via Interface-Boxen (Accessory)
Environmental Sensors
  • temperature sensor
  • noise sensor
  • shock sensor (with later SW update)
  • other sensors/IO via MxMessageSystem
Overvoltage Protection
via MX-Overvoltage-Protection-Box
Mounting Options
Wall
Ceiling
Bottom
CPU
i.MX 6 Dual Core incl. GPU
RAM
1GB
Image Angle horizontal
180°
Image Angle vertical
180°
Focal Length
1.6 mm
Aperture
f/2.0
Max. Frame Rate
  • MxPEG: 42@HD(1280x720), 34@Full-HD, 24@QXGA, 15@5Mp, 12@6MP
  • MJPEG: 25@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5Mp, 4@6MP
  • H.264: 25@Full-HD, 20@QXGA
Max. Image Size
6MP (3072x2048)
Lens(es)
B016
Image Format
Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), like 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA)
PTZ
Digital pan/tilt/zoom; max. zoom 8x (continious)
Camera Optics
Night
Day
Sensitivity
  • Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s
  • BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s
Video Codec
  • MxPEG+, M-JPEG, JPEG (max. output fromat 6MP)
  • H.264 (max. output format QXGA; bandwith limitation possible)
ONVIF
compatible
Image Sensor
1/1,8“ CMOS sensor, 6MP (3072x2048), progressive scan
Power Consumption (W)
Typ: 5 W
Power consumption increases due to connected consumers:
  • MxBUS max. 3 W
  • USB max. 2.5 W
  • total max. 4 W
Power Supply
PoE IEEE 802.3af
Status LED
3 (Multi-Color)
Interfaces
  • Ethernet 100BaseT (MxRJ45)
  • MiniUSB (MxMiniUSB)
  • MxBus
Signal Input
via Accessory (MX-232-IO-Box
Signal Output
via Accessory (MX-232-IO-Box
RJ45 Ethernet Connectors
1
Further Connectors (Terminals)
  • 1 MiniUSB
  • 1 MxBus
Height Product
99
Width Product (mm)
99
Depth Product (mm)
60
Weight Product (g)
265
Software
Camera Software (From Version)
5.2.0.x
Software Features
  • Multistreaming
  • Multicast
  • vPTZ
  • Programmable exposure windows
  • Single-frame capture
  • Full featured recording (MxFFS Archive, continuous recording, full image recording with audio)
  • Time and event controlled recording
  • Weekly scheduled arming considering holy days
  • Web functionality
  • Logo generator
  • Linked event logic
  • Master/slave arming
  • Several time-controlled pirivacy zones
  • Custom voice messages
  • VoIP phone
  • Remote control
  • Program interface/HTTP-API
  • Secure FTP
Security
Tamper Detection
Yes
View AllClose

Compatible products

Additional Information

Access Control Type:
Door Station
Aperture:
F2.0
Audio Support:
Built-in Speaker Built-in Microphone
Color:
Black
Compliance:
NDAA Compliant
Durability:
Weatherproof Vandal Proof
Environmental:
Outdoor
Field of View (Horizontal):
180
Internal Storage:
4 GB
Lens Size:
1.6mm
Lens Type:
Fixed Lens
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
RAM:
1GB
Resolution:
6MP
SD Card Support:
SD Card Supported
Sensor Size:
1/1.8"
Sensor Type:
CMOS
Serial Interface:
1x RS232
USB Interface:
1x USB 2.0
Warranty:
3-year Manufacturer Warranty
