Mobotix S74A Main Unit for connection up to four S74A IP Camera Sensor Modules

Brand:
Part Number: Mx-S74A
Write a Review
  • Mobotix S74A Main Unit for connection up to four S74A IP Camera Sensor Modules
  • Mobotix S74A Main Unit for connection up to four S74A IP Camera Sensor Modules
  • Mobotix S74A Main Unit for connection up to four S74A IP Camera Sensor Modules
  • Mobotix S74A Main Unit for connection up to four S74A IP Camera Sensor Modules
$849.00
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, MJPEG, MxPEG,
  • Lens Type : No Lens
  • Lens Size : No Lens Lens
  • Protection Code : IP66 IK10
  • Color : White
  • Environmental : Outdoor
  • Weatherproof : Yes

Description

Mobotix S74A Main Unit for connection up to four S74A IP Camera Sensor Modules

Key features:

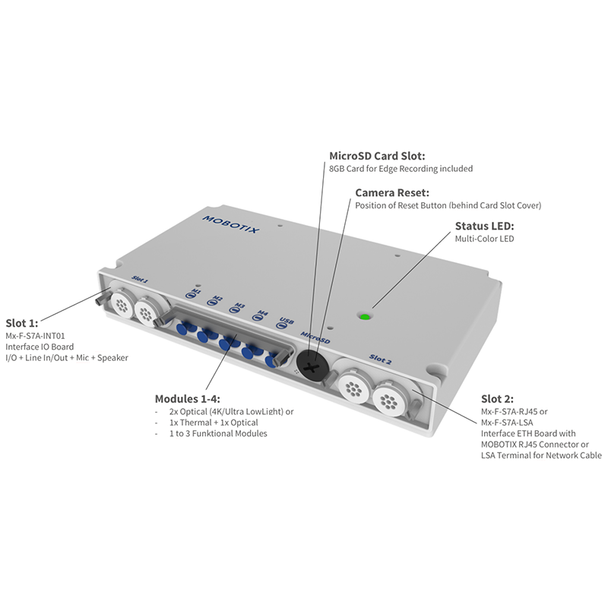

  • S74A IP camera module (body) for connecting up to four additional functional and optical sensor modules (to be ordered individually)
  • ONVIF-S/T-compliant MOBOTIX 7 system platform with H.264/H.265 (Triple Streaming), MxPEG+ and M-JPEG
  • Image sensor options (via sensor module): 4K (8 megapixels), color (day) and/or B/W (night) and/or color (day/night with IR cut)
  • Lens options (via sensor module): horizontal image angle from 95° to 15°
  • Max. image size (per image sensor): 4K UHD (3840 x 2160 pixels), 16:9
  • WDR: up to 120 dB
  • Functional extensions (via optional MOBOTIX modules): MultiSense (PIR, temperature, brightness sensor, Microphone), IR Light (supports 15°, 45°, 95° lenses), USB-C
  • Operating conditions: IP66/IK10 (housing), -40 to 65°C (-40 to 149 °F)
  • Internal DVR: 8 GB microSD (for MxPEG+ recordings)
  • Max. Power consumption: 25 W, supply via network cable, PoE Class 4 (IEEE 802.3af/at)
  • Connections: 1x RJ45 jack for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), 4x MOBOTIX module connection (2x optical/2x functional), USB-C, further connections via interface board
  • Software interface for MOBOTIX Certified Apps (based on Deep Learning, approx. 20 different 30-day demo versions pre-installed)
  • Housing: Aluminium, PBT-30GF
  • Color: white
  • Warranty: 3 years (optionally extendable up to 8 years)
  • This model comes without any modules, all modules need to be purchased separately.

Downloads

Datasheet Mobotix S74A
View AllClose

Additional Information

Built-in Microphone:
Built-in Speaker:
Camera Style:
Main Unit
Color:
White
Compatible Integration (API):
ONVIF Profile S ONVIF Profile T
Compression:
H.265 H.264 MJPEG MxPEG
Environmental:
Outdoor
Internal Storage:
8 GB
Lens Size:
No Lens
Lens Type:
No Lens
Minimum Illumination (B/W):
0.02 lux at 1/60s 0.001 lux at 1s
Minimum Illumination (Color):
0.1 lux at 1/60s
NDAA Compliant:
Operating Temperature:
-40 °C to 65 °C (-40 °F to 149 °F)
Power Consumption:
25 Watts
Protection Code:
IP66 IK10
Resolution:
8MP (4K)
Technology:
Network (IP)
USB Interface:
1x USB-C
Vandal Proof:
Warranty:
3-year Manufacturer Warranty
Weatherproof:
Wide Dynamic Range (WDR):
True WDR 120dB
