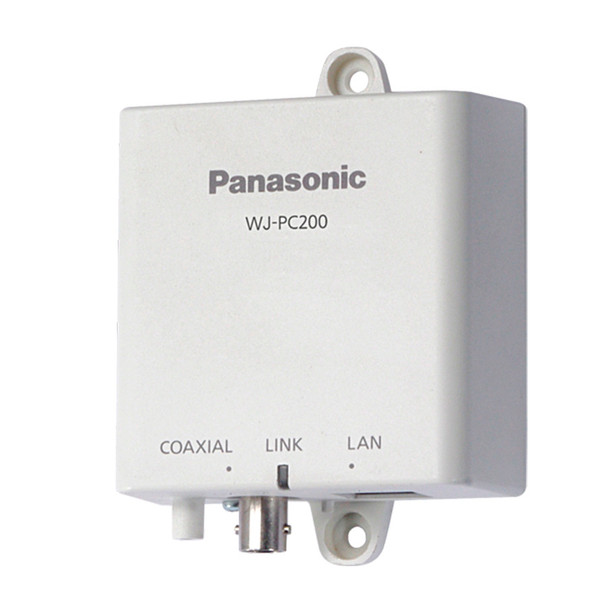

Panasonic WJ-PC200 Coaxial - LAN Converter

Panasonic WJ-PC200 Coaxial - LAN Converter

The WJ-PC200, camera side unit, enables support of the new Panasonic IP cameras across existing analog coaxial lines. Working with the WJ-PR201 or WJ-PR204, receiver side units, running a network system with coaxial lines is seamless.

Key Features:

• Two models (4-channel and 1-channel) are provided on the receiver side. Up to 4 network cameras can be connected and used on a single receiver side unit.(WJ-PR204)

• Power over Ethernet Plus (PoE+) ready. The coaxial - LAN converter is compliant with PoE+ standards (IEEE802.3at) and PoE+ cameras can be connected and used*1.

• High-speed transmission. The coaxial - LAN converter is capable of transmission speeds of 35 Mbps or over for TCP*2, and 45 Mbps or over for UDP connections*2. (When used with RG-6/U coaxial cable, and for distances under 2.0 km (6,560 feet) [PR201], 500 m (1,640 feet) [PR204]

• No setup required
• Connections can be established by simply connecting the coaxial cable to the coaxial - LAN converter.

1.There are limitations on the combinations of the cameras to be connected, the type of power supply and transmission range to the receiver side units.

2. Transmission speed is the speed of transmission between the receiver side unit and the camera side unit.

Values may vary depending on the condition of the coaxial cable (for example, as the cable deteriorates over time), network conditions, etc.
