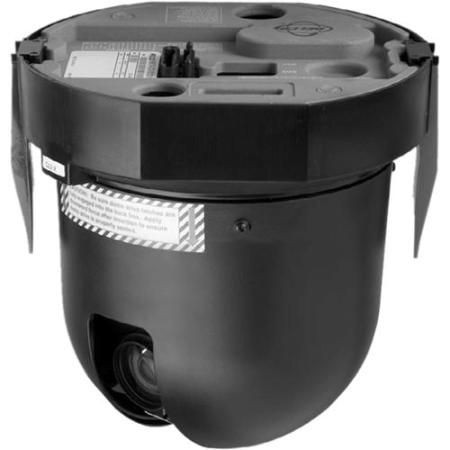

Pelco DD4CBW35 Spectra IV 35x D/N Dome Drive

Pelco DD4CBW35 Spectra IV 35x D/N Dome Drive

Pelco's Spectra IV SE 35X D/N DOME DRIVE features 256 camera control presets, electronic image stabilization, image enhancement, and can continuously pan to 360 degrees and capture with a vertical tilt ranging from +2 degrees to -92 degrees. This assures you of complete ground, wall and ceiling surveillance.

In the manual mode, the dome drive pans at a speed of 0.1 degrees to 80 degrees/sec and in the turbo mode the speed is enhanced to 150 degrees/sec, ensuring perfect capture of very fast moving subjects like a speeding car. Moreover, certain presets in the drive support up to 400 degrees/sec of pan speed and up to 200 degrees/sec of tilt speed.

Autosensing Protocol (Coaxitron, RS-422 P and D) is a unique feature of the Pelco Dome Drive, which automatically controls the recording capability depending on various variables like the speed of movement, zoom speed, amount of illumination, and so on. This, along with the digital position and zoom control and feedback through D protocol, makes surveillance very effective and accurate for you.

Key Features:

• Tough, Heavy-Duty Construction
• Improved Bubble Design
  • – 0.090-Inch Injection Molded Polycarbonate
  • – Increased Optical Clarity
  • – 3.5X Stronger Than Previous Heavy-Duty Bubbles
  • – Available in Clear and Smoked Bubble
• Trim Rings Are Constructed of Thick Aluminum
• Protective Cage for Lower Dome (Optional)
• Built-in Back Box Memory
• 2 Auxiliary Outputs
• 7 Alarm Inputs
• Integrated Passive UTP Circuit
• Compatible with 27X and 35X Spectra® IV SE Dome Drives
• In-Ceiling and Pendant Models Available
• Indoor/Outdoor Applications
• Pendant Models Meet NEMA Type 4X and IP66 Standards
• Ability to Add IP Network Capability by Purchasing Optional TXB-IP Module
