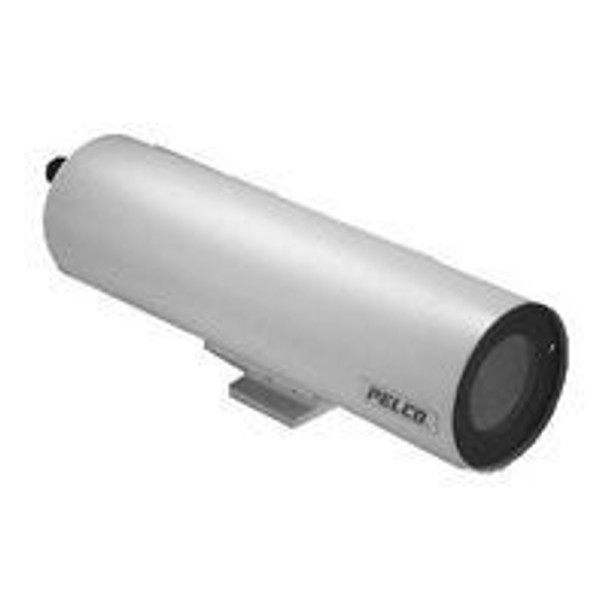

Pelco EH2512 Dustproof Water Proof Basic Enclosure

Pelco EH2512 Dustproof Water Proof Basic Enclosure

Pelco EH2500 Series are dust-tight and waterproof to protect CCTV cameras from adverse environmental conditions. Constructed from aluminum, the enclosures are compact and lightweight. They can be installed on fixed mounts or pan/tilt units. The EH2500 Series enclosures can accommodate a variety of cameras with fixed focal length or motorized zoom lenses. The enclosures have an outside diameter of 4.25 inches (10.80 cm) and are available in three lengths: 8 inches (20.32 cm), 12 inches (30.48 cm), and 15 inches (38.10 cm).

Each model features a sled for camera mounting and a "T" handle on the rear plate to assist in removing the plate during installation and servicing.

Key features of Pelco EH2512

• Designed for Maximum Rain Protection
• Dustproof
• Compact, Lightweight
• Aluminum Construction
• Meets NEMA Type 4 and IP66 Standards
• Accepts Cameras with Fixed Focal Length or Motorized Zoom Lenses
• H x W x L inches:
  • EH2512: 2.75 x 2.75 x 10.25/ EH2512-1/EH2512-2: 2.75 x 2.75 x 9.25
