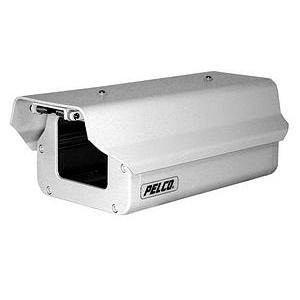

Pelco EH3508-1 Enclosure

Pelco EH3508-1 Enclosure

Key Features:

• Small, Contemporary Design
• Forward-Opening Hinged Lid
• Rear Link-Lock Latch
• Die-Cast and Extruded Aluminum Construction
• Designed for Indoor/Outdoor Applications
• Easy Access for Servicing and Installation
• Cable Entry Glands and Mounting Holes on Bottom of Enclosure
• Defroster
• Maximum Power Consumption: 13W
• Camera Mounting: Multiple holes on adjustable camera sled, camera sled mounts in threaded strip for easier removal and can be inverted for additional camera elevation
• Cable Entry: Two PG13.5 compression glands on bottom, maximum cable diameter 0.47 (1.19 cm)
• Cable Entry Holes: 0.875" (2.22 cm) diameter, will accept 0.5" (1.27 cm) conduit fitting when compression gland is removed
• Latch: Link-lock No. 3, stainless steel, can be secured with padlock
• Connectors: One 10-position terminal block for input wiring
• Viewing Window: 0.187" (4.75 mm) thick Lexan
• Viewing Window Area: 2" (5.08 cm) diameter circle
