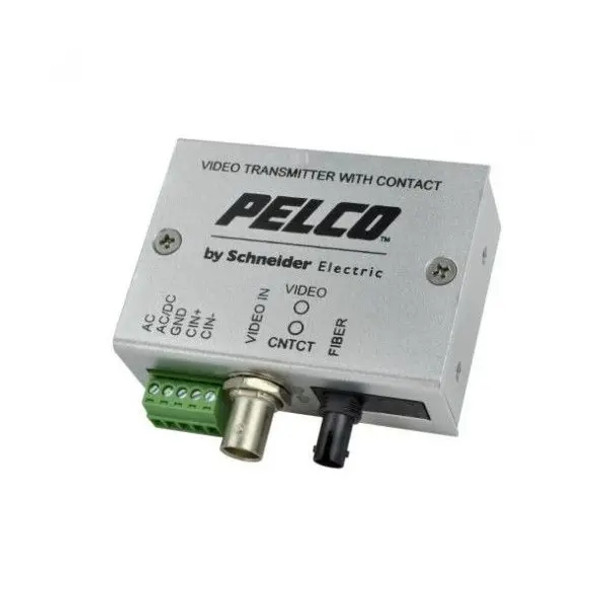

Pelco FTV10S1FCM Miniature Single-Channel Fiber Video Transmitter for Long-Range Composite Signal Applications

Pelco FTV10S1FCM Miniature Single-Channel Fiber Video Transmitter for Long-Range Composite Signal Applications

The Pelco FTV10S1FCM is a compact and reliable fiber transmitter engineered for the transmission of a single composite video channel over single-mode optical fiber. With support for distances up to 54 km (33.6 mi) and compatibility with Pelco FRV20 Series receivers, this unit offers exceptional performance and integration flexibility. Its plug-and-play functionality and miniature design make it ideal for both stand-alone use and installation within Pelco camera enclosures or domes.

Key Features:

• Miniature design suitable for installation in Pelco EH2515/EH3512/EH3515 enclosures and DF5/DF8 domes, or as a stand-alone unit
• 10-bit digitally encoded video for high-resolution, noise-free video transmission over long distances
• Single-mode fiber support for distances up to 54 km (33.6 mi), enabling wide-area video monitoring
• 1 simplex contact closure allows integration with external signaling or control systems
• Compatible with NTSC, PAL, and SECAM video formats, supporting global video standard requirements
• Optical power budget up to 16 dB, delivering strong and consistent signal performance
• Laser diode transmission for reliable and efficient optical output
• Exceeds EIA RS-250C short-haul transmission standards for professional-grade video quality
• Built to meet NEMA TS 1/TS 2 and Caltrans standards for use in transportation and outdoor environments
• LED indicators provide real-time feedback on device status and operational integrity
• External power required (compatible with FEXTPS), offering installation flexibility across surveillance systems
• Ideal for critical surveillance installations requiring compact, high-performance video transmission with minimal configuration and long-distance reach.
