Pelco HS2100 Low Profile Ceiling Enclosure

Pelco HS2100 Low Profile Ceiling Enclosure

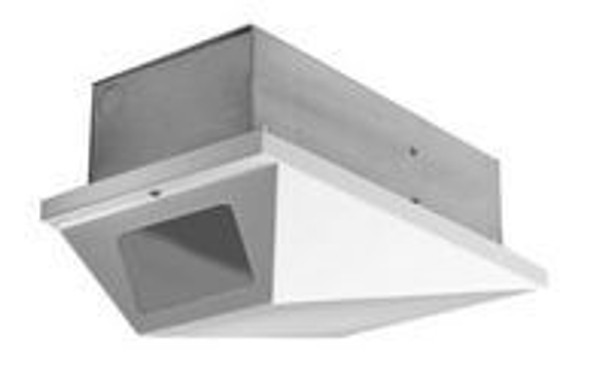

Pelco HS2100 is a low profile ceiling enclosure designed for use with solid-state CCD cameras. The unobtrusive, compact design compliments any business or office decor and provides maximum surveillance for fixed camera applications.
The enclosure is designed for use in fixed or dropped (false) ceilings. The upper section mounted above the ceiling is constructed from aluminum to meet most fire code requirements; the lower section is constructed from steel to provide maximum protection and durability.& Because of the lightweight design, the enclosure can be mounted directly on a ceiling tile without the use of an additional mounting plate. Pelco offers an optional 360-degree rotating mounting plate (E2100) for false ceiling applications, which allows the enclosure to be rotated in 10-degree increments to change the viewing area.& Pelco HS2100 is engineered for ease of installation and service. The lower section is hinged to provide convenient access for camera and lens adjustments. The adjustable camera mounting sled allows the camera to be positioned vertically or horizontally, depending on the camera size. A tamper-resistant screw secures the enclosure cover.& Maximum Lens and Camera Combination including BNC connector, H x W x L inches: HS2100: 3.00 x 4.00 x 10.00

Key Features:

• Low Profile, Small "Wedge" Style
• Designed for Use with CCD Type Cameras
• For Use in Fixed or Dropped (False) Ceilings
• Hinged Door Opens for Convenient Access to Camera
• Constructed from Aluminum (Upper Section) and Steel (Lower Section)
