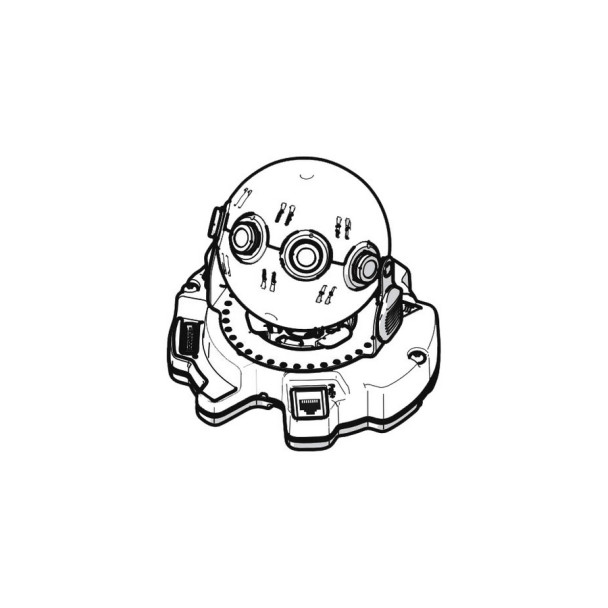

Pelco IMM12036-E-BASE Environmental Vandal 360° 12MP IP Camera Base Module
The Pelco IMM12036-E-BASE is an environmental vandal-resistant base module designed for the 360-degree Optera IMM Series panoramic IP cameras. This robust base module provides exceptional durability and performance in challenging outdoor environments while delivering 12 megapixel resolution across four sensors for comprehensive 360-degree coverage.
Built to withstand extreme environmental conditions, this base module features IP66 and NEMA Type 4X weather protection with IK10 vandal resistance rating. The environmental design enables operation in temperatures ranging from -40°C to 50°C (-40°F to 122°F) with 10% to 95% relative humidity tolerance, making it suitable for the most demanding outdoor surveillance applications.
The module supports advanced video compression including H.264 High profile and MJPEG encoding with frame rates up to 30 fps. Power is supplied via PoE+ (IEEE 802.3at) with consumption of up to 23 watts including the integrated heater function. The 2.7mm fixed lens configuration provides optimal coverage for 360-degree panoramic surveillance with superior wide dynamic range performance exceeding 120 dB.
Key Features:
- 12MP resolution (4 x 3MP sensors) for exceptional detail across 360° coverage; enables comprehensive situational awareness with high-quality imaging
- Environmental vandal-resistant design with IP66/IK10 ratings; ensures reliable operation in harsh outdoor conditions and protects against tampering
- Extended operating temperature range -40°C to 50°C (-40°F to 122°F); maintains consistent performance in extreme weather conditions
- PoE+ (IEEE 802.3at) power supply with 23W consumption; simplifies installation with single cable for power and data transmission
- H.264 compression with up to 30 fps frame rate; optimizes bandwidth and storage while maintaining video quality
- 2.7mm fixed lens with >120 dB wide dynamic range; provides clear imaging in challenging lighting conditions
- NDAA compliant for government and security applications; meets federal requirements for surveillance equipment procurement
- Integrated heater function for cold weather operation; ensures reliable performance in sub-zero temperatures
Downloads
Popular Search
Additional Information
|
Lens Size:
|
2.7mm
|
|
Max Power Consumption:
|
23 Watts
|
|
Power Supply:
|
PoE+ (IEEE 802.3at)
|
|
Protection Code:
|
IK10
IP66
|
|
Resolution:
|
12MP
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
