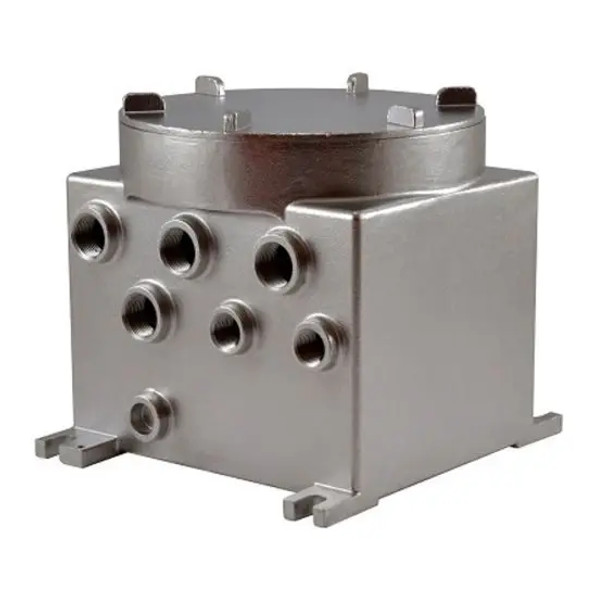

Pelco MBX2MAA Explosion-Proof Stainless Steel Communication Box with Fast Ethernet and Multi-Voltage Input for MAXIMUS Cameras
The MBX2MAA from Pelco is a high-performance explosion-proof communication box constructed from AISI 316L stainless steel, specifically built for integration with Videotec MAXIMUS cameras. Engineered for hazardous environments, it meets certification standards for use in Zones 1 and 21IC (Gas) and Zones 21 and 22 IIIC (Dust), and operates reliably in temperatures up to +80°C. With multiple input voltage options (230Vac, 120Vac, 24Vac), two analog video bypasses with BNC connectors, and two I/O bypasses with multi-pin connectors, the MBX2MAA also includes an integrated Fast Ethernet switch to streamline connectivity and optimize performance in demanding conditions.
Key Features:
- Explosion-proof certification for gas and dust zones; ensures safe operation in hazardous environments
- AISI 316L stainless steel construction; offers outstanding corrosion resistance and long-term reliability
- Supports 230Vac, 120Vac, and 24Vac inputs; accommodates diverse power configurations
- 2 analog video bypasses with BNC connectors; maintains efficient and clear signal transmission
- 2 I/O bypasses with multi-pin connectors; provides flexible external device integration
- Integrated Fast Ethernet switch with 3 RJ45 ports and 1 SFP port; enhances data connectivity and system control
