Description

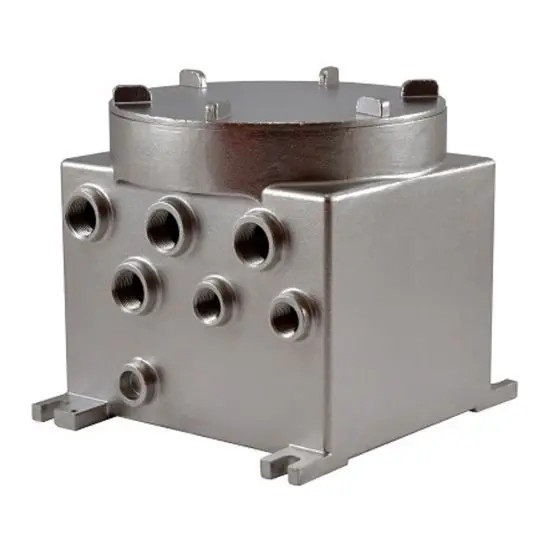

Pelco MBX3MAA Explosion-Proof Stainless Steel Communication Box with Multi-Voltage Input and Video Bypass for MAXIMUS Cameras
The MBX3MAA from Pelco is a rugged explosion-proof communication box engineered from AISI 316L stainless steel, offering reliable power and connectivity support for Videotec MAXIMUS IP and analog cameras. Designed for hazardous environments, the MBX3MAA is certified for use in Zones 1 and 21IC (Gas) and Zones 21 and 22 IIIC (Dust), with an operating temperature up to +80°C. It supports multiple input voltages (230Vac, 120Vac, 24Vac) and features two bypasses for analog video and I/O signals, ensuring efficient integration and dependable communication in industrial settings.
Key Features:
- Certified for hazardous zones; ensures safe use in explosive gas and dust environments
- AISI 316L stainless steel construction; provides high corrosion resistance and long-term durability
- Multiple input voltage options (230Vac, 120Vac, 24Vac); allows flexible installation based on power availability
- 2 analog video bypasses with BNC connectors; simplifies signal routing for surveillance setups
- 2 I/O bypasses with multi-pin connectors; supports easy integration with external control devices
