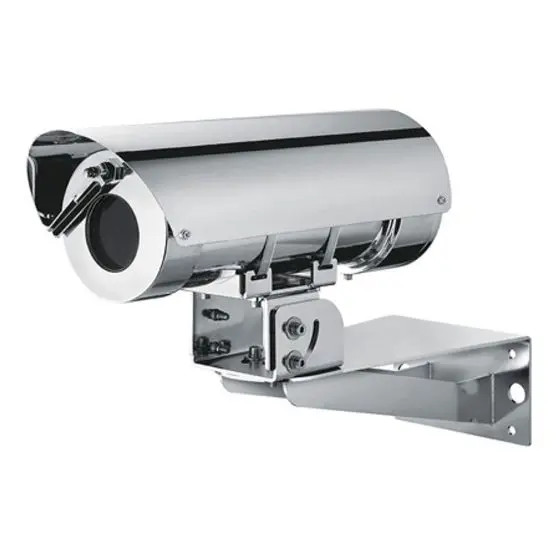

Pelco MHX1CS000A MHX Stainless Steel Housing 230Vac with Sunshield
The Pelco MHX1CS000A MHX Stainless Steel Housing delivers exceptional camera protection for hazardous environments requiring 230Vac power supply. Specifically engineered for critical monitoring applications in refineries, gas pipelines, oil tankers, offshore platforms, and chemical processing facilities, this housing ensures reliable camera operation where explosive risks are present and international power standards are required.
Constructed from AISI 316L electropolished stainless steel, this housing provides superior corrosion resistance and long-lasting durability in the most challenging industrial environments. The integrated sunshield protects against direct sunlight and glare, while the 230Vac power configuration makes it ideal for international installations and European industrial standards.
The housing's robust design accommodates extreme temperature variations from -40°C to +60°C, ensuring reliable performance across diverse climate conditions. Two 3/4" NPT threaded connections provide flexible cable management options, supporting both cable glands and conduit installations for maximum installation versatility.
Key Features:
- AISI 316L electropolished stainless steel construction; provides maximum corrosion resistance for long-term reliability in harsh chemical environments
- 230Vac power supply configuration; meets international electrical standards for global industrial installations
- Extreme temperature operation from -40°C to +60°C (-40°F to +140°F); maintains reliable performance across diverse climate conditions
- Dual 3/4" NPT threaded connections; enables flexible cable management with support for various gland and conduit configurations
- Explosion-proof design for hazardous area installations; meets safety requirements for refineries, chemical plants, and offshore platforms
- Integrated sunshield protection; reduces glare and solar heating effects that can impact camera performance
Downloads
Popular Search
Additional Information
|
Dimensions:
|
3.15x3.23x9.65in
|
|
Environmental:
|
Outdoor
|
|
Material:
|
Stainless Steel Electropolished 316L
|
