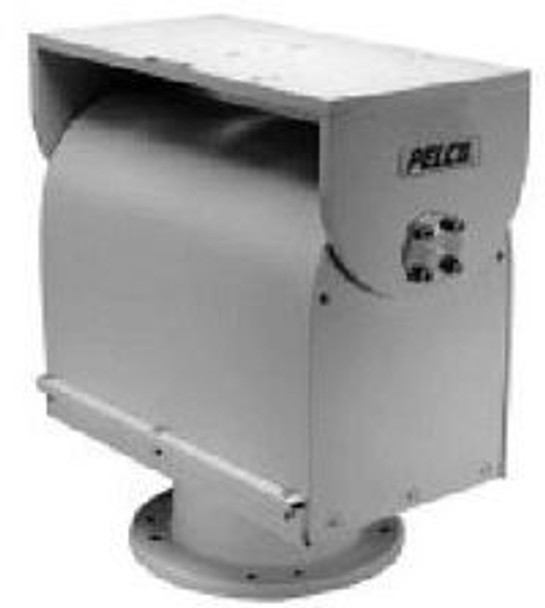

Pelco PT1250P Pan Tilt outdoor

Pelco PT1250P Pan Tilt outdoor

Pelco PT1250P is a heavy duty pan and tilt easily capable of handling loads up to 100 pounds (45.4 kg). Equipped with high torque AC motors with adjustable worm-gear final drives, this pan/tilt ensures long operational life as well as drift-free operation.

The PT1250P is capable of auto/random scan operation when used with our solid-state auto/random scan joystick control. No addi-tional conductors, micro switches or relays are required for auto/random scan operation.

The PT1250P is manufactured from cast and plate aluminum, with all internal parts corrosion protected steel or aluminum. Limit stops are externally adjustable for ease of installation.
Mounting hole patterns on spindle base and tilt table top are compatible with most VICON enclosures and mounts.

Key features:

• 120 VAC OR 230 VAC OPERATION
• OPTIONAL PRESET POSITIONING CAPABILITY&
• HEAVY DUTY, ADJUSTABLE WORM GEAR FINAL DRIVE&
• EXTERNAL PAN AND TILT LIMIT ADJUSTMENT&
• CAPABLE OF AUTO/RANDOM SCAN OPERATION&
• RUGGED ALUMINUM CONSTRUCTION&
• INDOOR/OUTDOOR APPLICATIONS&
• MAXIMUM LOAD 100 LBS (45.4 KG)
