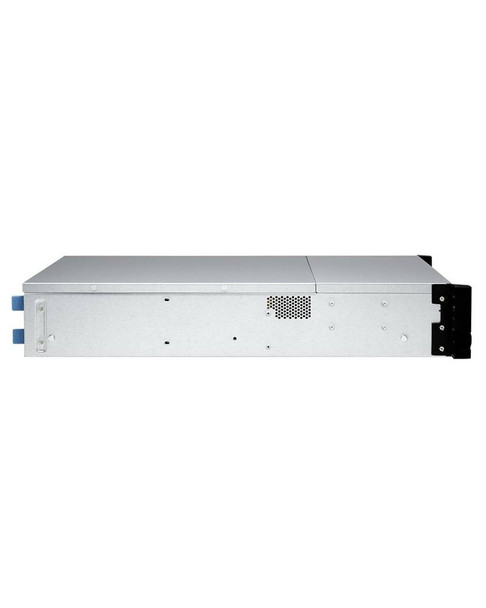

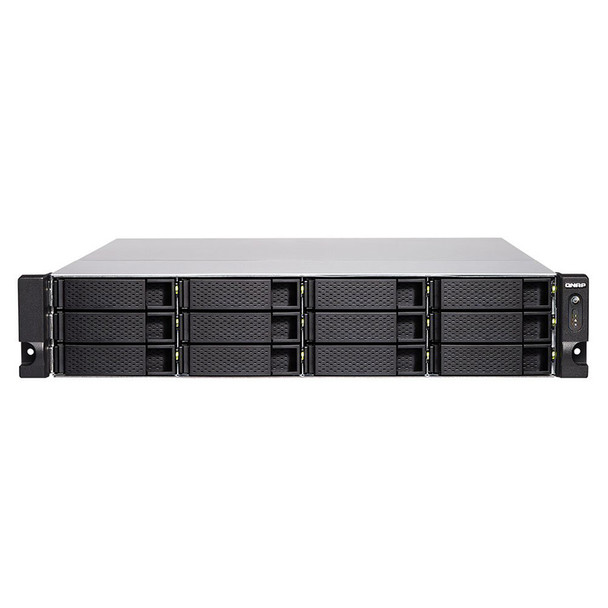

QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS

Brand:
Part Number: TS-1886XU-RP-D1622-8G
Write a Review
  • QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS
  • QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS
  • QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS
  • QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS
  • QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS
  • QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS
$2,685.00
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support

Description

QNAP TS-1886XU-RP-D1622-8G 12+6 Bay Cost-effective Auto-tiered Rackmount NAS

12 (+6)-Bay TurboNAS, SATA 6G, Xeon D-1602 2.5GHz, 8GB ECC RAM, 4-LAN, built0in 2 10Gb SFP+, 40Gb network-ready, iSCSI, RAID 0,1, 5, 6, 10, 5+spare, 6+spare, 10+spare, global hot spare, max 128 GB RAM, max 12-LAN, PCIe expansion slot x4, redundant power supply

As a high-performance and cost-effective NAS solution designed for enterprises, the 2U rackmount TS-1886XU-RP provides 12 3.5-inch drive-bays and 6 SSD dedicated slots. Additionally, powered by an Intel® Xeon® D processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory, the TS-1886XU-RP delivers server-grade performance with dependable reliability. The pre-installed dual-port 10GbE SFP+ network card not only empowers bandwidth-demanding applications but also supports RDMA/RoCE to improve performance and lower CPU consumption. Moreover, the scalable TS-1886XU-RP satisfies growing data storage needs, along with advanced business-ready features for streamlined data and IT management, including SSD over-provisioning, comprehensive virtualization support, software-defined networking and virtual switch, QuDedup source-based data deduplication, elastic cloud storage gateway services, and more.

Key Features:

  • Processor: Intel Xeon Processor D-1622, 4 core / 8-thread 2.6 GHz, max boost to 3.2GHz
  • System Memory: 8GB DDR4 ECC (2 x 4GB)
  • Maximum Memory: 128 GB (by installing RDIMM)
  • 10 Gigabit Ethernet Port: 2 x 10GbE SFP+
  • 40 Gigabit Ethernet Port: 40GbE ready
  • Drive Compatibility: 2.5" and 3.5" SATA and SSD
  • PCIe Slot: 4 x PCIe Gen3 slots
Cost-effective NAS solution with powerful Intel® Xeon® D processor

The TS-1886XU-RP features an Intel® Xeon® D-1600 series processor, with up to 128 GB DDR4 ECC memory, and a redundant power supply, delivering server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution. By connecting multiple QNAP expansion enclosures or enabling Virtual JBOD (VJBOD) to leverage other QNAP NAS storage, the storage capacity of the TS-1886XU-RP can be easily expanded to satisfy fast-growing data and budget flexibility.

ECC memory forestalls data corruption to assure reliability

The TS-1886XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-1886XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-1886XU-RP can leverage the power of dual-channel architecture to boost performance. You can also customize memory configuration (supports up to 128 GB RAM) of the TS-1886XU-RP for greater performance to tackle dynamically-changing workloads, such as virtualization.

HDD + SSD hybrid structure to optimize storage performance and utilization

The TS-1886XU-RP features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to satisfy business needs in various applications.

SSD caching and auto-tiering enable 24/7 optimized storage efficiency

While SSD prices have dropped significantly, and SSD capacity and performance have been greatly optimized, organizations can easily take advantage of SSD strengths. With the native six 2.5-inch SSD slots and QNAP’s SSD-aware features, the TS-1886XU-RP can maximize performance with high cost-effectiveness.

Dual 10GbE connectivity optimizes high-speed data transfer and supports RDMA/RoCE

The TS-1886XU-RP comes with a pre-installed dual-port 10GbE SFP+ Smart NIC to improve bandwidth-demanding data center and virtualization applications. The 10GbE Smart NIC uses Broadcom BCM57412 NetXtreme®-E network controller that supports RDMA over Converged Ethernet (RoCE and RoCEv2), allowing data to bypass general network drivers, the socket layer, and directly enter ESXi server and storage memory buffer. RoCE technology can improve NAS performance while lowering CPU consumption of applications that use an Ethernet network, ideal for low-latency and high-speed large data transferring.

Abundant I/O capability with PCIe expansion

The TS-1886XU-RP features four PCIe Gen3 x4 slots (one slot pre-installed with a dual-port 10GbE expansion card) that allow for various expansion cards for expanding application potential.

Note: 2U rackmount NAS model uses low-profile graphics cards.

All-in-one server to host virtual machines and containers

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. You can use Network & Virtual Switch to allocate adequate physical network resources to virtual machines, containers, and the NAS to simplify network deployment.

Block-based iSCSI LUN: Ideal choice for virtualization storage

The TS-1886XU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1886XU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Move business data to the cloud flexibly and economically

The TS-1886XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

Complete backup planning

The TS-1886XU-RP provides a reliable, flexible backup and disaster recovery solution to assist organizations in routine backup jobs cost-efficiently and with high productivity.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often expensive. Now you have more budget-friendly options for easily adding your NAS to a SAN environment. After installing a Marvell®, ATTO® or QNAP Fibre Channel card in the TS-1886XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage many QNAP NAS benefits including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of data security.

Standard 5-year warranty

The TS-1886XU-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.

View AllClose

Specifications

CPUIntel® Xeon® D-1622 quad-core 2.60 GHz processor (burst up to 3.2 GHz)
CPU Architecture64-bit x86
System Memory8 GB UDIMM DDR4 ECC (2 x 4GB)
Maximum Memory128 GB (4 x 32 GB)
Memory Slot4 x Long-DIMM DDR4
Flash Memory5GB (Dual boot OS protection)
Drive BayFront: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45)4
10 Gigabit Ethernet Port2 x 10GbE SFP+ SmartNIC port
Pre-installed with a 10GbE PCIe adapter
PCIe Slot4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or x4
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or x4
*Slot 4 is preinstalled with a 10GbE network adapter.
**Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 1 is in use.
***Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 3 is in use.
USB 3.2 Gen 1 port2
Form FactorRackmount
LED IndicatorsHDD, SSD, Status, LAN, storage expansion port status
ButtonsPower, Reset
Dimensions (HxWxD)88.3 × 482 × 549.7 mm
Weight (Net)12.73 kg
Weight (Gross)18.69 kg
Operating temperature0 - 40 °C (32°F - 104°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit550W(x2), 100-240V
Power Consumption: Operating Mode, Typical117.92 W
FanSystem fan: 3 x 60mm, 12VDC
Sound Level56.9 db(A)
System WarningBuzzer
Max. Number of Concurrent Connections (CIFS)1500
View AllClose

Additional Information

Accessory Type:
NAS
