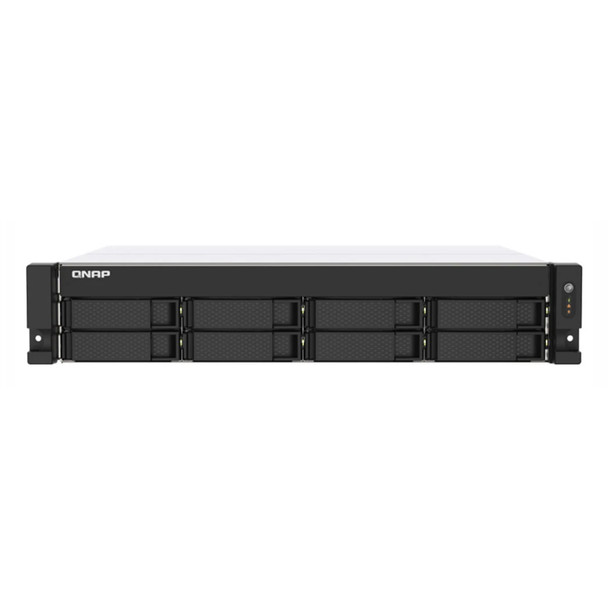

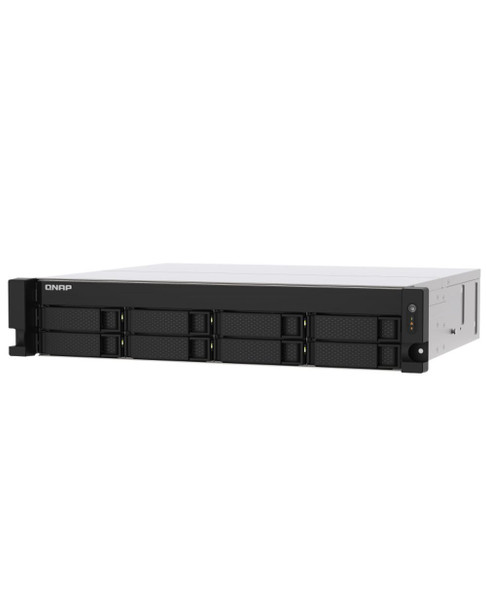

QNAP TS-873AU-RP-4G-US High-performance NAS Powered by Quad-core AMD Ryzen, 4GB DDR4
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-873AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-873AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-873AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
- Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
- Add extra functionality to the TS-873AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
- Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
- Host multiple virtual machines and containers to run a wide range of applications on the TS-873AU-RP.
- Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
Absolute performance with AMD Ryzen™ and up to 32GB RAM
Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-873AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.
Note: Purchase the optional RAIL-B02 rail kit to deploy the TS-873AU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-873AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-873AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

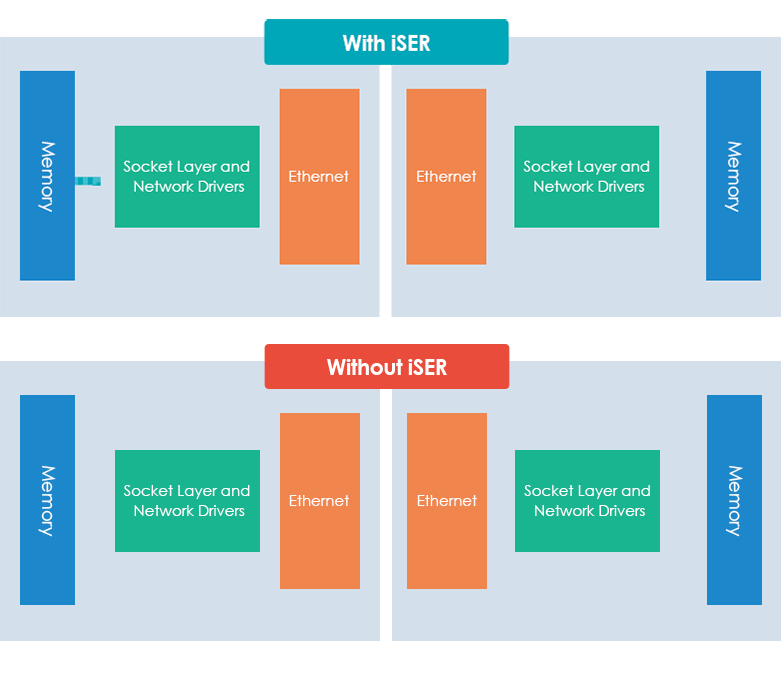

Optimized performance for VMware Virtualization with iSER
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-873AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the Mellanox® ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible Mellanox® NICs and switches compatible with Mellanox® or supporting PFC (Priority Flow Control) configuration.
All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-873AU-RP to simplify network deployment.
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). You can run multiple virtual server applications on a single TS-873AU-RP without needing additional physical servers.
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
Upgrade to 2.5GbE networking
The TS-873AU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed networks, QNAP offer various adapters and peripherals, including a USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) and 5GbE PCIe expansion card (Model name QXG-5G1T-111C).

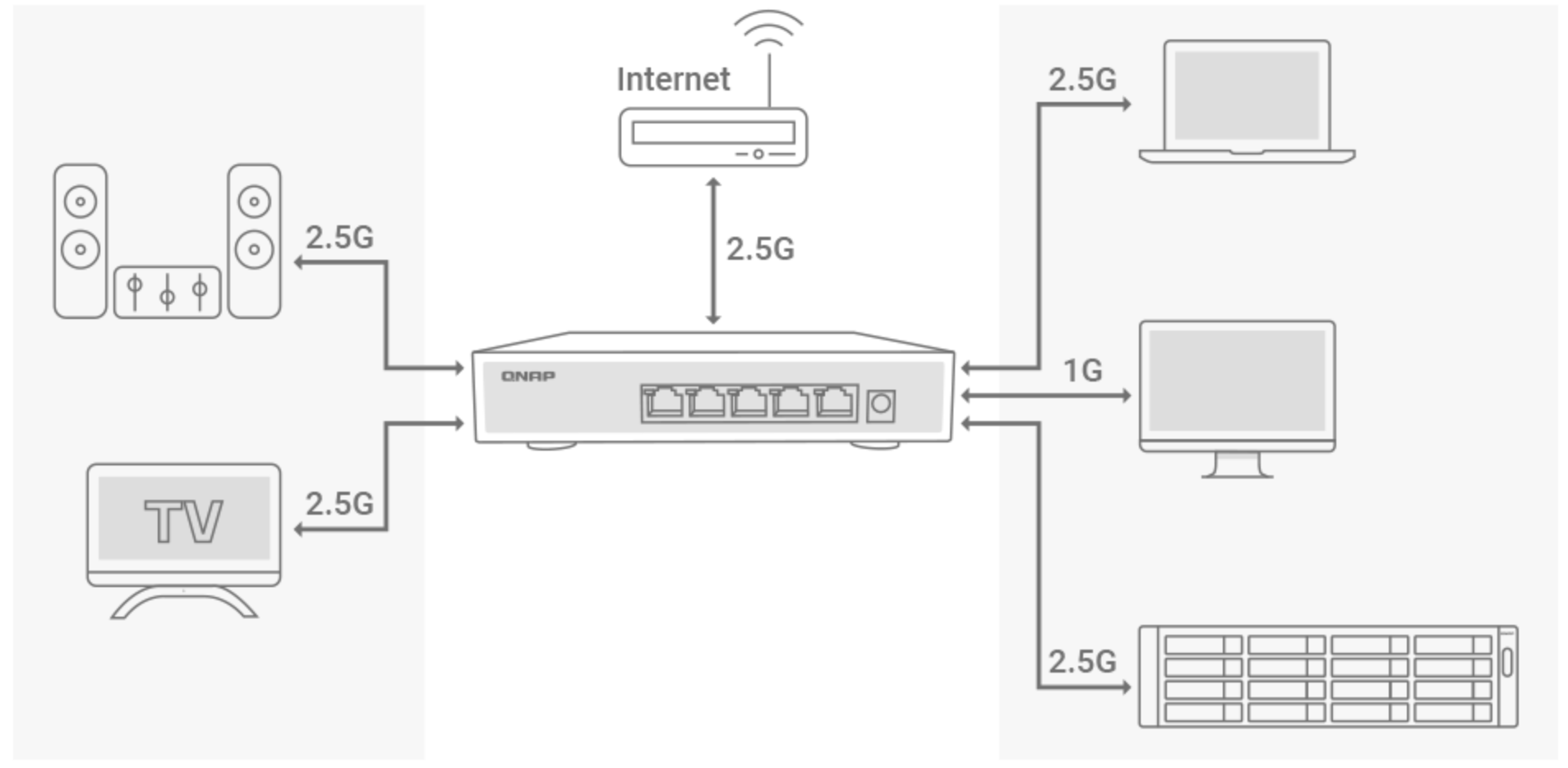

Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.
Note: The QSW-1105-5T 2.5GbE switch will be available from Q3 2020.

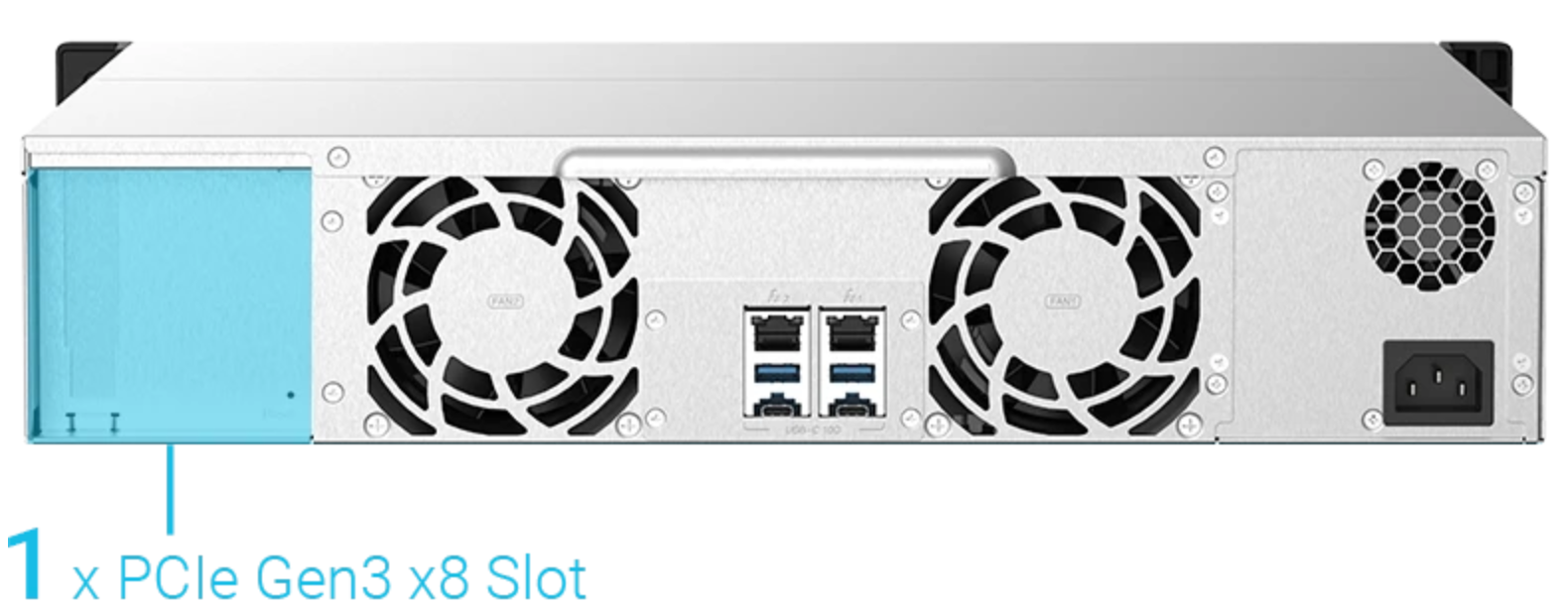

Abundant I/O capabilities with PCIe expansion
The TS-873AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot.
Note: Compatible with a low-profile graphics card that does not require additional power.
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-873AU-RP supports entry-level low-profile NVIDIA® GeForce® graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.
1. Supported video formats depend on the hardware and software specifications of the devices. Playback capability and quality may vary due to factors including the original file formats/quality, hardware and software limitations, and output devices.
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for virtual machines is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the TS-873AU-RP will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List before purchasing or attempting to install a graphics card into the TS-873AU-RP.
Accelerate IOPS performance with SSD Caching
Adding an SSD cache to the TS-873AU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.
Optimum Performance and Reliability
The TS-873AU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.
|USB 3.2 Gen 2||Central Device Management||Central NAS Management|
|USB 3.2 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.2 Gen 1) to greatly boost data transfer performance. The TS-873AU-RP comes with two USB 3.2 Gen 2 Type-C and a Type-A port, providing greater flexibility and ensuring future-proof compatibility with new USB devices.||QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.||Q'center provides a central management platform to manage multiple QNAP NAS across various sites, monitor system logs, and manage NAS updates and maintenance.|
Move business data to the cloud flexibly and economically
By deploying cloud storage gateways and enabling local caching on the TS-873AU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
Complete backup planning
The TS-873AU-RP provides reliable and cost-effective solutions for backup and disaster recovery planning.

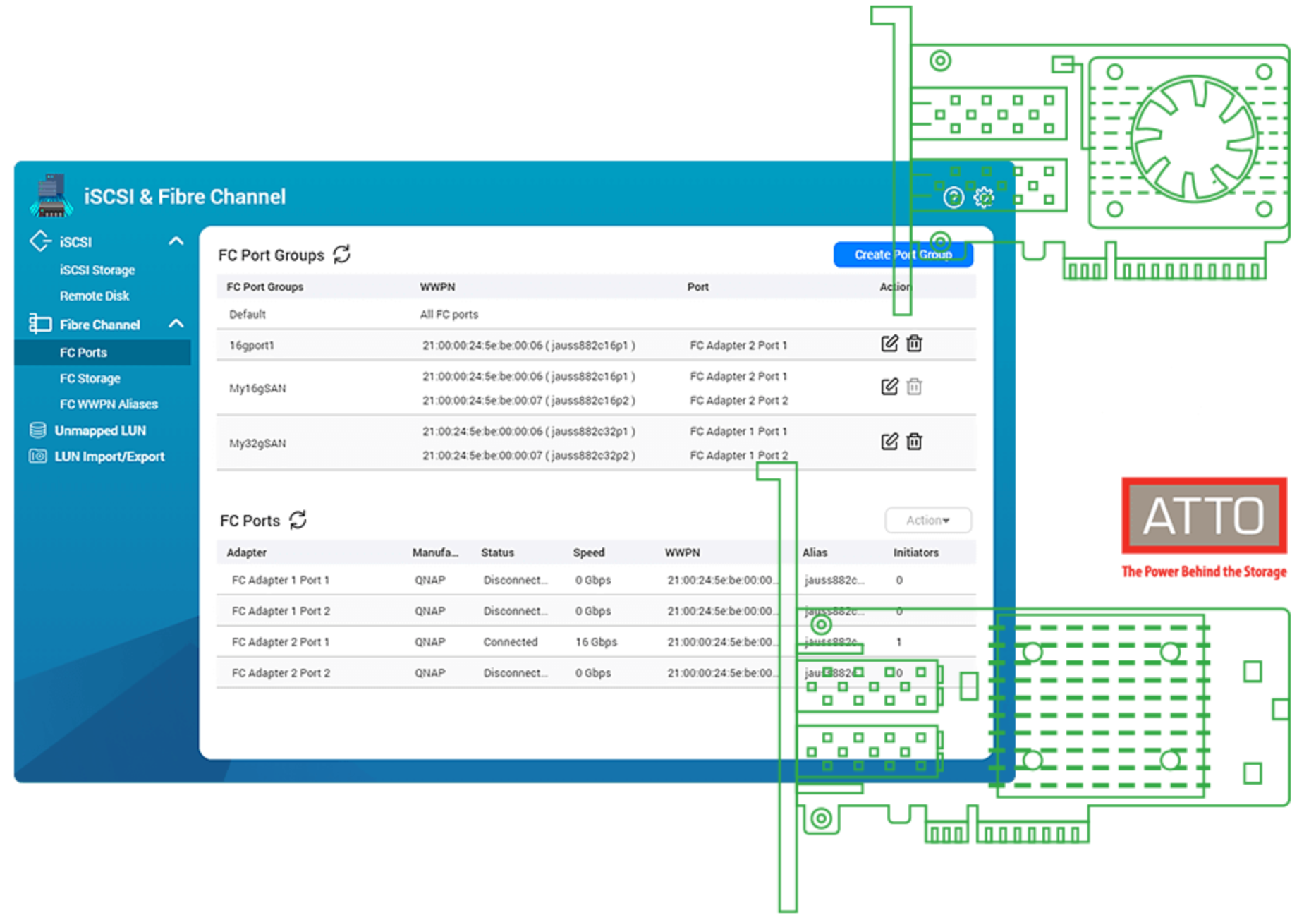

Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-873AU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Flexible and economical storage expansion
QNAP provides easy storage expansion solutions. Here are several ways to expand the storage of your TS-873AU-RP to accommodate data and business growth:
Attach Expansion Enclosures
Besides supporting SAS or QXP SATA expansion cards, the TS-873AU-RP provides USB interfaces to connect a RAID Expansion Enclosure or JBOD Storage Enclosure. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to eight QNAP NAS can be mounted as local disks on the TS-873AU-RP.
Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your TS-873AU-RP can grow with your business.
Migrate to a New NAS
Install your TS-873AU-RP hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Extend hardware warranty up to 5 years
The TS-873AU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension to increase warranty coverage up to 5 years.
|CPU||AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor|
|CPU Architecture||64-bit x86|
|Floating Point Unit|
|Hardware-accelerated Transcoding||Optional via a PCIe graphics card|
|System Memory||4 GB UDIMM DDR4 (1 x 4 GB)|
|Maximum Memory||32 GB (2 x 16 GB)|
|Memory Slot||2 x Long-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|Flash Memory||5GB (Dual boot OS protection)|
|Drive Bay||8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit QNAP Compatibility
|Drive Compatibility||3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
|M.2 SSD Slot||Optional via a QNAP QM2 PCIe card|
|SSD Cache Acceleration Support|
|2.5 Gigabit Ethernet Port (2.5G/1G/100M)||2|
|5 Gigabit Ethernet Port (5G/2.5G/1G/100M)||Optional via a network adapter|
|10 Gigabit Ethernet Port||Optional via a network adapter|
|PCIe Slot||1 x Gen3 x8|
|USB 3.2 Gen 1 port||1 x Type-A|
|USB 3.2 Gen 2 (10Gbps) Port||2 x Type-C
1 x Type-A
|HDMI Output||Optional via a PCIe graphics card|
|Form Factor||2U Rackmount|
|LED Indicators||HDD 1-8, Status, LAN, USB, Power|
|Dimensions (HxWxD)||3.5 × 17.01 × 14.65 inch|
|Weight (Net)||20.17 lbs|
|Weight (Gross)||30.93 lbs|
|Operating temperature||0 - 40 °C (32°F - 104°F)|
|Relative Humidity||5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Power Supply Unit||300W PSU(x2), 100 - 240V|
|Power Consumption: HDD Sleep Mode||36.08 W|
|Power Consumption: Operating Mode, Typical||61.25 W
Tested fully populated with WD10EFRX hard drives.
|Fan||2 x 80mm, 12VDC|
|Sound Level||19~44.9 db(A)|
|Max. Number of Concurrent Connections (CIFS)||1200|
NAS (Network Attached Storage)
AMD Ryzen™ V1500B 2.2GHz
3-year Manufacturer Warranty
