Description

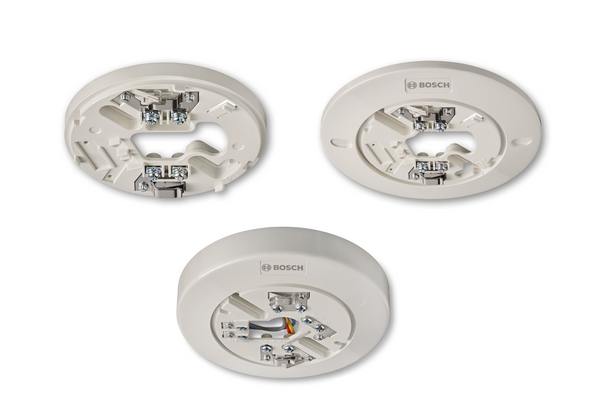

Bosch FCA-350-B4 Detector Base 4" 2-Wire
The Bosch FCA-350-B4 is a 4-inch detector base engineered for two-wire fire alarm installations supporting both 12V DC and 24V DC systems. Designed specifically for compatibility with Bosch's FCP-350 photoelectric smoke detectors and FCH-350 heat detectors, this electronics-free base features a plastic tamper-lock lug preventing unauthorized detector removal in commercial and institutional environments. The compact design accommodates surface mounting using anchors or direct installation on three-inch octagonal, four-inch square/octagonal, or single-gang electrical boxes.
Constructed from ivory-colored ABS plastic, the base provides reliable operation across 0°C to 49°C (32°F to 120°F) temperature range with humidity tolerance up to 95% RH at 40°C. The two-wire configuration simplifies installation by combining power and signal on single cable pair, reducing wire count and installation labor compared to four-wire systems. Current-limited to 150mA at voltages between 15.0V and 33.0V, the base supports extended loop lengths in addressable fire alarm systems while maintaining UL 521 and UL 268 compliance for heat and smoke detector applications.
Key Features:
- Universal 12V/24V DC Compatibility: Supports both 12V DC and 24V DC two-wire fire alarm systems with voltage range from 15.0V to 33.0V; eliminates need for separate base models when mixing system voltages across installations.
- Tamper-Lock Security: Integrated plastic lug prevents unauthorized detector head removal; maintains system integrity in public areas, schools, and commercial facilities where tampering risks exist.
- Flexible Mounting Options: Accommodates surface mounting with anchors or direct attachment to 3" octagonal, 4" square/octagonal, or single-gang electrical boxes; adapts to existing building infrastructure without specialized mounting hardware.
- Interchangeable Detector Heads: Compatible with FCP-350 photoelectric smoke detectors and FCH-350 fixed temperature/rate-of-rise heat detectors; enables detector type changes without base replacement during system reconfiguration.
