Raytec RL150-AI-PAN PANORAMIC Medium Range White-Light Illuminator

Raytec RL150-AI-PAN PANORAMIC Medium Range White-Light Illuminator

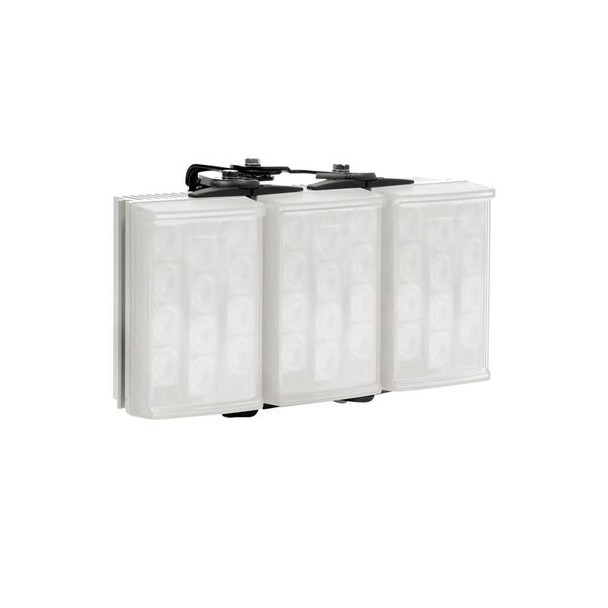

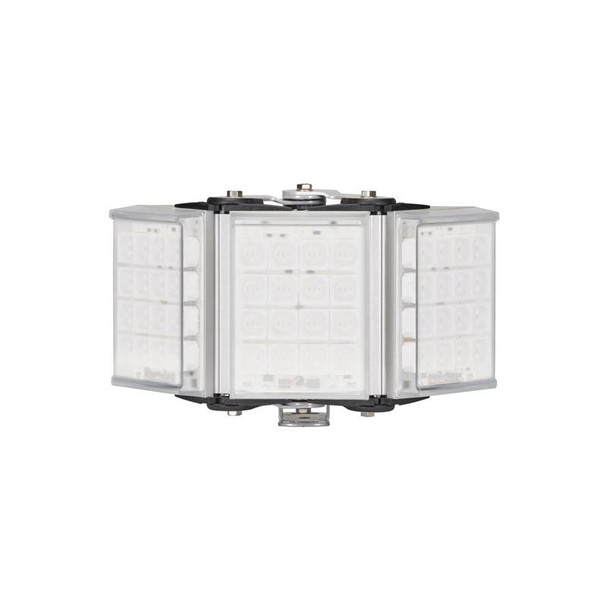

RAYLUX Panoramic White-Light illuminators are designed for high megapixel, PTZ, wide angle and multi-sensor cameras. The RL150-AI-PAN series provides powerful 180° illumination to deliver outstanding night-time images at distances up to 41m (135ft). Part of the RAYLUX family, Panoramic Illuminators incorporate the latest Platinum Elite LED technology to deliver exceptionally even 360° surveillance with only two units. Covering huge areas, they evenly illuminate multiple subjects and allow your camera to fully zoom into any incident, anywhere in the scene - so that you never miss an event. Mains powered, RAYLUX Panoramic illuminators are supplied with a dedicated PSU as standard.

Key Features:

• Max Distance: 68m (41ft)
• Angles and Max Distances:
• 60-180x25° - 68m (223ft)
• 180° - 41m (135ft)
• 60° - 68m (223ft)
• Input: Universal 100-230V AC - comes with PSU
• Beam Shape: Elliptical with HRT
• (Hot Spot Reduction Technology)
• Beam Angle System: Adaptive Illumination
• Consumption: 75W
• LED Type: Platinum SMT LEDs
• Number of LEDs: 48
• Wavelength: White Light
• Designed for High MP, PTZ and Multi-sensor Cameras
• 180° coverage up to 41m (135ft)
• 360° coverage with only 2 units
• Latest Platinum Elite SMT LED's
• Even Output illumination
• HRT Hot-spot Reduction Technology
• Supplied with Dedicated Power Supply Unit
