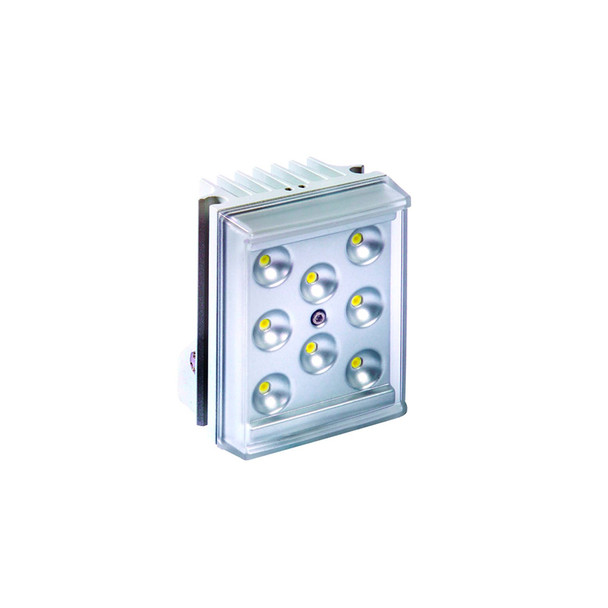

Raytec RL25-30  Short Range White-Light Illuminator

High Performance White-Light LED illuminators provide class leading performance, long life, energy efficiency and zero maintenance. They incorporate the very latest surface mount LED’s to deliver excellent optical output and outstanding reliability, providing even illumination and excellent night time images for surveillance cameras and general area lighting.

The RAYLUX 25 provides a world class ‘White- Light’ output of 110lm/W at the LED source, and an independently tested luminaire output of 800 lm.

Each unit is fitted with Active LED Life Control to carefully control LED output, delivering consistent illumination power and a projected working life of 10 years.

RAYLUX illuminators are supplied with bracket and power supply. Control features on the power supply include adjustable power output, photocell and telemetry control. RAYLUX 25 is designed for low light installations up to 35m (115ft).

RAYLUX 25 is also available with low voltage PSU.

Key Features:

  • Mains Powered White-Light LED Illuminators
  • Surface Mount LED Technology
  • Long 10 Year Life - Zero Maintenance
  • Various Angles (10-120°)
  • Accurate Colour Rendition
  • Quick Start
  • Even Output Illumination
  • Active LED Life Control
  • Supplied with Dedicated Power Supply Unit
  • Angles and Max Distances:
    • 30° - 20m (66ft)
  • Input: Universal 100-230V AC - comes with PSU
  • Beam Shape: Circular
  • Beam Angle System: Adaptive Illumination™
  • Consumption: 15W
  • LED Type: Platinum SMT LEDs
  • Number of LEDs: 8
  • Wavelength: White Light
Other Options:
  • RL25-10: 10° - 115ft
  • RL25-50: 50° - 14m (46ft)
  • RL25-120: 120° - 8m (26ft)
