Raytec RL300-AI-50 High Performance White-Light LED illuminator

Brand: Raytec
Part Number: RL300-AI-50
Write a Review
  • Raytec RL300-AI-50 High Performance White-Light LED illuminator
  • Raytec RL300-AI-50 High Performance White-Light LED illuminator
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Field of View (Horizontal) : 50°Field of View
  • Color : Silver
  • Environmental : Outdoor

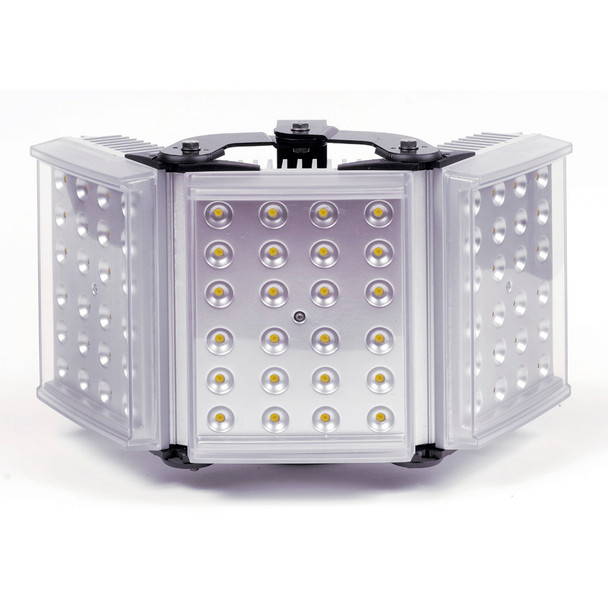

Raytec RL300-AI-50 High Performance White-Light LED illuminator

High Performance White-Light LED illuminators provide class leading performance, long life, energy efficiency and zero maintenance. They incorporate the very latest surface mount LED's to deliver excellent optical output and outstanding reliability, providing even illumination and excellent night time images for surveillance cameras and general area lighting. The unique Adaptive Illumination™ concept provides the flexibility to alter the angle of illumination on site to suit the required lighting specification. The RAYLUX 300 provides a world class ‘White-Light' output of 110lm/W at the LED source, and an independently tested luminaire output of 7000 lm.

Each unit is fitted with Active LED Life Control to carefully control LED output, delivering consistent illumination power and a projected working life of 10 years.

RAYLUX illuminators are supplied with bracket and power supply. Control features on the power supply include adjustable power output, photocell and telemetry control. RAYLUX300 is suitable for all low light installations up to up to 240m (787ft).

Key features:

  • 50-180 degree AI,
  • White-Light + PSU, Narrow Angle: 90m (295ft)
  • Wide angle: 56m (184ft)
  • Lumens: Source 110 perwatt lm/w - luminaire 120 lm/w
  • Total lumens*: 7,000 per luminaire
  • Max Distance: up to 240m (787ft)
  • Optics: SMT LED's
  • Consumption: 120W max
  • Voltage: 14V current controlled
  • Colour Temperature**: 6500k Colour
  • Reproduction Index**: 74-80+
  • Weight: 6kg (13.2lbs)
  • Environmental: IP66
  • Temp Range: -50 to +50˚C (-58 to 122˚F)
  • Cable Length: 2.5m
  • Colour: Silver
  • Wavelength: White-Light
  • Dimensions: 420 x 195 x 66mm, 16″ x 8″ x 3″ approx

Additional Information

Accessory Type:
Infrared Illuminators
Field of View (Horizontal):
Max Power Consumption:
120 Watts
Night Vision Range (ft):
Night Vision Type:
Night Vision (Color - White Light)
5-year Manufacturer Warranty
