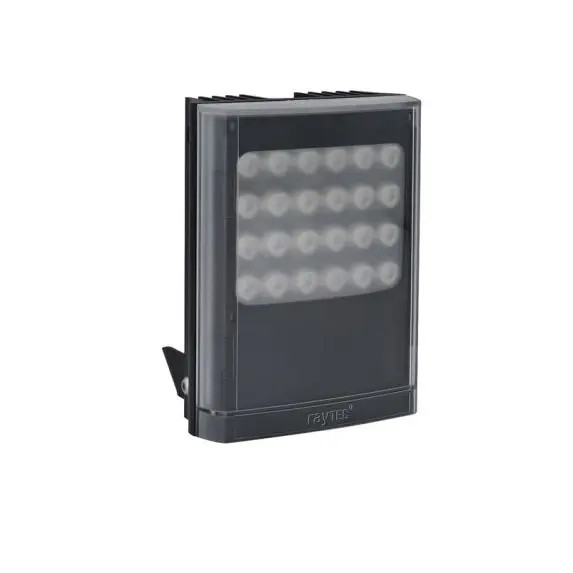

Raytec VAR2-HY8-1 Long-Range Hybrid IR and White Light Illuminator

Raytec VAR2-HY8-1 Long-Range Hybrid IR and White Light Illuminator

The Raytec VARIO2 VAR2-HY8-1 is a long-range hybrid illuminator combining 850nm semi-covert infrared and visible white light illumination in a single unit. With 12 semi-covert IR LEDs and 12 white LEDs, it delivers up to 951 feet of IR coverage and 472 feet of visible light range, providing flexible illumination for a wide range of surveillance scenarios. The interchangeable lens system with Hot-Spot Reduction Technology (HRT) ensures even, artifact-free illumination without overexposed white spots, even at long distances. Three lenses are included — 10x10°, 35x10°, and 60x25° — enabling precise beam shaping to match the field of view of paired cameras. Housed in an IP66-rated enclosure with a U-bracket included, the VAR2-HY8-1 is designed for demanding outdoor deployments and runs on 24VDC for easy integration with standard power infrastructure.

Key Features:

• 850nm IR and white light in a single unit — eliminates the need for separate IR and white light illuminators, reducing installation cost and complexity.
• Up to 951ft IR range and 472ft white light range — provides extensive coverage for perimeter protection, parking lots, and long-corridor surveillance.
• Hot-Spot Reduction Technology (HRT) — delivers even illumination across the full beam without overexposed centers, improving camera image quality at all ranges.
• Three interchangeable lenses (10x10°, 35x10°, 60x25°) — allows precise beam matching to camera field of view for optimized scene coverage.
• 12x semi-covert IR and 12x white LEDs — balances covert surveillance capability with visible deterrence illumination from a single device.
• IP66-rated enclosure — ensures reliable operation in outdoor environments exposed to rain, dust, and harsh weather conditions.
• 24VDC operation with U-bracket included — simplifies integration into existing power infrastructure and enables flexible mounting configurations.
