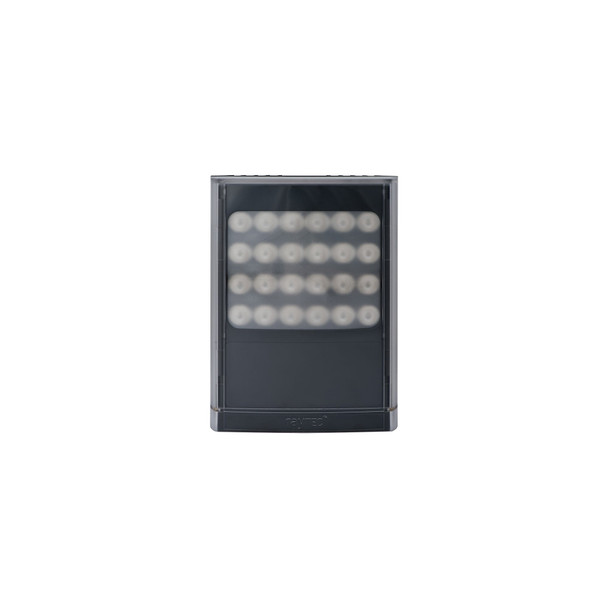

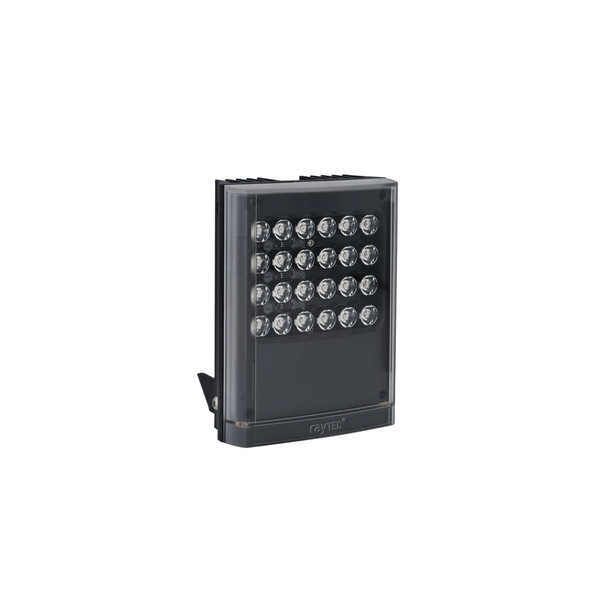

Raytec VAR2-i8-1-c Long Range Infra-Red Illuminator with Invisible IR and 3 angle options included

Raytec VAR2-i8-1-c Long Range Infra-Red Illuminator with Invisible IR and 3 angle options included

VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 i8-1 Infra-Red series delivers maximum distances up to 350m (1148ft).

Key Features:

• Low Voltage Infra-Red Illuminators
• Advanced Security Settings
• Max Distance: 350m (1148ft)
• Angles and Max Distances:
• 10° x 10° - 350 m (1148ft)
• 35° x 10° - 165 m (541ft)
• 60° x 25° - 95 m (312ft)
• Input: 12-24V AC/DC
• Beam Shape: Elliptical with HRT (Hot Spot Reduction Technology)
• Beam Angle System: VARIO interchangeable lens system
• Consumption: 46W
• LED Type: Platinum Elite SMT LEDs
• Number of LEDs: 24
• Wavelength: 940nm

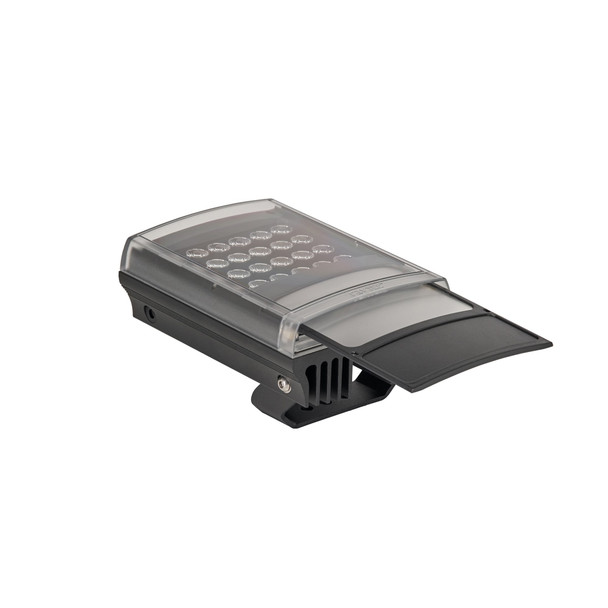

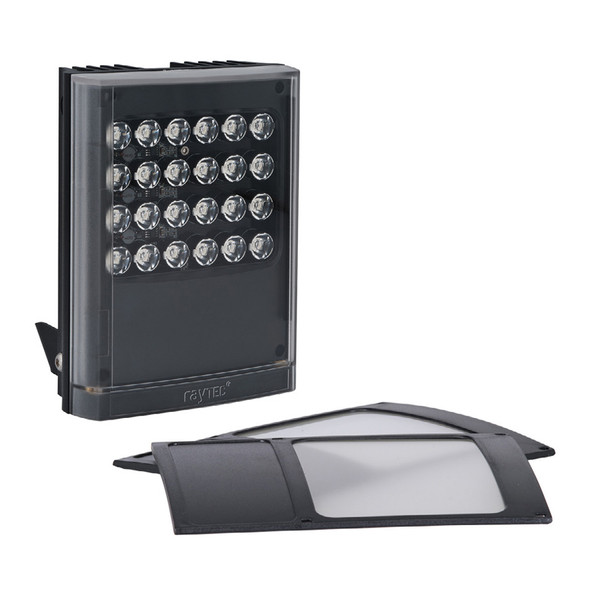

VARIO Interchangeable lens system

Angle of illumination can be easily, quickly and precisely adjusted by changing the VARIO holographic lens insert, to match the specific camera field of view.

Hot-spot Reduction Technology (HRT)

HRT - Hot-Spot Reduction Technology delivers a highly diffused, elliptical beam shape to deliver more light where it is needed, generating both longer distances and minimizing light wastage. The HRT system also prevents overexposure of foreground objects.

VARIO Remote Control (optional)

Allows set up quickly and safely from ground level and provides access to advanced set up features. Reduces both cost and time of installation and commissioning.

LED Status Indicator

Quick operational feedback on status and performance of the illuminator. Allows simple and quick commissioning of the installation and easy maintenance reviews

Platinum Elite SMT LED Technology

VARIO2 illuminators use cutting edge PLATINUM Elite SMT LED technology together with an enhanced Cool Running™ thermal management system to deliver World leading power, reliability and flexibility.

Advanced Security Settings

Programming inputs on both the VARIO remote control and on the VARIO2 illuminator can be disabled if required. Additionally, the VARIO remote control can be given a PIN code to lock in settings and limit access.

Green Technology

In-built green features such as power adjust, telemetry control and timer function enhance the potential for energy savings.
