Description

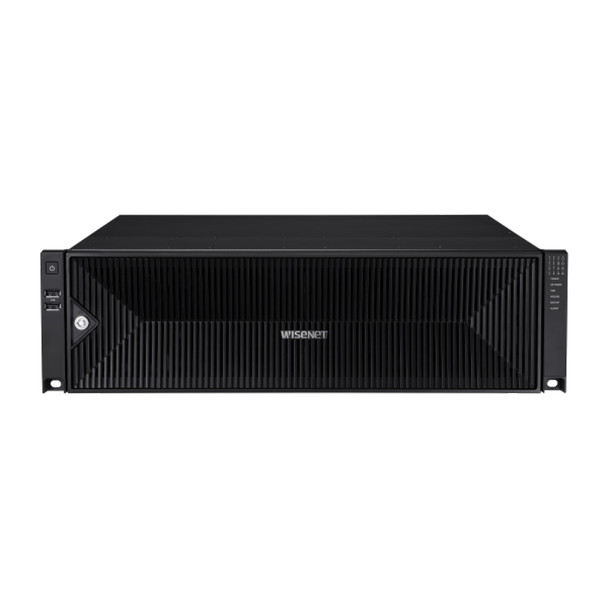

Samsung Hanwha 64 Channel 8K NVR, 400Mbps Recording, H.265 Support, 16 Hot Swap HDD bays, No HDD included, XRN-6410DB4
Hanwha's XRN-6410DB4 NVR is an 8K 64 channel NVR supporting H.265/H.264/MJPEG. Key features include Dual stream recording, 16 Hot Swap HDD bays, iSCSI, & 2x HDMI for dual display. Up to 400Mbps recording, 400Mbps transfer, up to 64Mbps playback throughput (RAID Mode), Alarm I/O, 2-way audio, ONVIF, maximum camera resolution of 32MP recording/display and fisheye dewarping on WEB and CMS, 16 hot swap hard disc drives and redundant power supplies, while supporting high-level functions such as RAID 5/6, three gigabit ethernet ports and advanced AI analytics search, it also supports a local monitor for ease of use, automatic camera registration, ONVIF camera support and mobile apps for smart phone and tablet connectivity. Advanced features include ARB (Automatic Recovery Backup) & Failover (N+1) Dynamic Event support, & AI metadata search. Intel CPU based NVR (NDAA compliant)
Key Features:
- Up to 64 channels, Supports up to 32 megapixel camera resolution
- 400Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 16 internal HDDs
- Support RAID 5/6
- ARB & failover(N+1), dynamic event, AI metadata search support
Downloads
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
8 Channel
|
|
Alarm Output:
|
4 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
AAC
G.711
G.726
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
CE
cULus
EAC
FCC
|
|
Channel Capacity:
|
64 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
440 x 132 x 571 mm (17.32 x 5.19 x 22.48 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
16 SATA Ports
|
|
LED Indicator:
|
HDD LED
LAN LED
Power LED
Status LED
|
|
Languages:
|
English
Chinese
Croatian
Czech
Danish
Dutch
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Rumanian
Russian
Serbian
Spanish
Swedish
Thai
Turkish
Vietnamese
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max Power Consumption:
|
265 Watts
|
|
Max. FPS and Resolution:
|
15fps at 32MP
|
|
Max. Incoming Bandwidth:
|
400Mbps
|
|
Max. Recording Resolution:
|
32MP
|
|
Max. Storage Capacity:
|
160 TB
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
Samsung Hanwha X Series
|
|
Protocols:
|
ARP
DDNS
DNS
HTTP
HTTPS
ICMP
IGMP
IPv4
IPv6
NTP
RTP (TCP)
RTP (UDP)
RTSP
SMTP
SNMP
TCP/IP
UDP/IP
uPnP
|
|
RAID:
|
RAID 5
RAID 6
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
USB Interface:
|
2x USB 2.0
2x USB 3.0
|
|
Video Output:
|
2x HDMI
|
|
Warranty:
|
3-year Manufacturer Warranty
|
